| Manufacturer Name | OZ-GEDNEY CO / NEER |
| MfgPartNo | X17 |
| Access Opening | Side |
| Additional Information | Applicable Standard NEMA FB-1; Capacity 6 Cu Inch |
| Application | For Rigid Conduit And IMC |
| Approval | UL 514A/514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Form 7[TM] |
| Catalog Number | X17 |
| Color | Gray;Grey |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | X |
| Connection | Tapered FNPT |
| CountryOfOrigin | MX |
| Cover Type | Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron |
| DDCATEGORY | 549 |
| Directory | CIS |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Zinc Electroplated With Aluminum Enamel |
| Form | 7 |
| Form Type | Form 7 |
| Height | 1-3/4 in |
| Hub Location | Cross |
| Hub Size | 1/2;1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 1/2 IN FORM7 X COND BODY;1/2 MAL X COND BODY |
| Item Number | 52102 |
| Length | 5-5/8 in |
| Long Description | RIGID CONDUIT BODY, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED GRAY IRON (BODY), NEOPRENE (GASKET), STAINLESS STEEL COVER (SCREW) MATERIAL; 5.63 INCH L X 3.31 INCH W X 1.75 INCH H SIZE; RIGID/IMC CONDUIT USED ON; 1/2 INCH HUB SIZE |
| MSDS Form Number | * |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Gray Iron (Body), Neoprene (Gasket), Stainless Steel Cover (Screw) |
| Material Quality | Iron |
| Noun | * |
| Number Of Hubs | 4 |
| Product Description | 1/2 MAL X COND BODY |
| Product Keywords | WEBREADY |

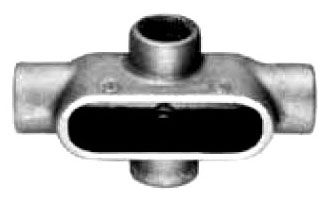

| Product Name | Electrical conduit fitting body |
| ProductLine | OZ-G |
| Size | 5.63 Inch L x 3.31 Inch W x 1.75 Inch H |
| Special Features | Allow connections for branch runs;Complete interchangeability with other manufacturers Form 7 conduit bodies;Connect and change direction of conduit runs;Flat back design for greater wiring capacity and surface mounting;Internal volume and maximum wire clearly marked on castings;Make bends in conduit system;Permit access to conductors for maintenance;Provide openings for splicing;Serve as pulling fittings;Suitable for wet locations when used with gasketed covers;Tapered threaded hubs (NPT);Time-saving clip-on covers in steel, gray iron or aluminum |
| Standard | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type | Type X Conduit Body |
| UNSPSC | 39131708 |
| UPC | 78312652102 |
| Used On | Rigid/IMC Conduit |
| Vendor Name | OZ-GEDNEY CO / NEER |
| Vendor Number | 783126 |
| Vendor Short Name | OZ-G |
| Width | 3-5/16 in |
