| Manufacturer Name | P&S WIRING DEVICES (PASS & SEYMOUR) |
| MfgPartNo | 2097-TRWRW |
| Actuator | Control Circuit |
| Additional Information | Wire Size 14 to 10 AWG Solid/Stranded (Copper); Constructional Feature Tamper/Weather Resistant; Grounding Type Grounding; Feed Through Capacity 20 Amp; Overall Dimension 1.73 Inch Width x 1.03 Inch Depth x 4.2 Inch Height; Trip Level 4 to 6 Milliamp; Tri |
| Amperage | 20.0 A |
| Amperage Rating | 20 |
| Application | Commercial/Residential |
| Application Sector | Multi-Dwelling Unit, Commercial, Residential |
| Approval | UL (Canada and US), UL 498/943, CSA C22.2 |
| Catalog Number | 2097-TRWRW |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-20R |
| Connection | Back and Side Wire |
| Connection Location | Back and Side |
| CountryOfOrigin | CN |
| Current Rating | 20 Amp |
| DDCATEGORY | 573 |
| Directory | CIS |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Families | 573 |
| Family Color | White |
| Family Description | Receptacles & Surge Protectors |
| Features | Weatherproof, Self-Test |
| Finish | Matte |
| Frequency Rating | 60 Hz |
| Grade | Specification |
| Height | 4.2 |
| Image Location | * Image |
| Indoor Outdoor | Both |
| Industry | ELX |
| Interrupt Rating | 4 to 6 mA |
| InvoiceDescription | RADIANT SELF TEST TR WR GFI 20A 125V WH;20A 125V GFCI RCPT |
| Is Tamper Resistant | Yes |
| Item Number | 03610 |
| Jigsaw Channel Availability | Distribution |
| Length | 1.03 |

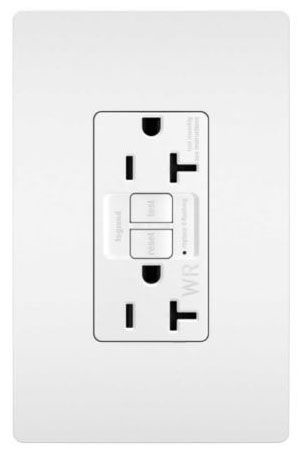

| Long Description | GFCI DUPLEX RECEPTACLE, DUPLEX WITH LED INDICATOR LIGHT TYPE; HIGH IMPACT RESISTANT THERMOPLASTIC MATERIAL; WHITE COLOR; 5-20R CONFIGURATION; 3 WIRE(S); SPECIFICATION GRADE; UL (CANADA AND US), UL 498/943, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | High Impact Resistant Thermoplastic |
| Material Quality | Polycarbonate |
| Mounting Type | Box |
| NEMA Configuration Code | 5-20R |
| NEMA Rating | 20A |
| Noun | * |
| Number Of Gangs | 1.0 |
| Number Of Poles | 2 |
| Number Of Receptacles | 2.0 |
| Number Of Wires | 3 |
| Operating Temperature | -35C to +66C |
| Outlet Type | Tamper-Resistant, Weather-Resistant, GFCI |
| Product Depth | 1.13 in |
| Product Description | 20A 125V GFCI RCPT |
| Product Family | radiant Non-Resi G6 Specialty GFCI | |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| ProductLine | P&S |
| Special Features | Spec Grade, Weather Resistant |
| Standard | UL, CULUS, cULus, UL Listed, FSUL |
| Trip Range | 4 to 6 mA |
| Trip Type | .025 Second Nominal |
| Type | Outlet;Duplex with LED Indicator Light |
| UNSPSC | 39121406 |
| UPC | 78500703610 |
| Vendor Name | PASS & SEYMOUR INC WIRING DEVICES & ACCESSORIES |
| Vendor Number | 785007 |
| Vendor Short Name | P&S |
| Voltage Rating | 125;125 Volt AC at 60 Hertz |
| Width | 1.73 |
| Wiring | Back, Side |
