HUBBELL WIRING DEVICES/KELLEMS

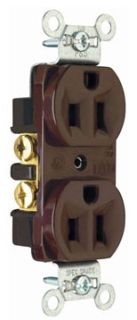

RF CTRL RCPT, FULL CTRLD, 15A, 5-15R, BR

Mouse over image to zoom, click to enlarge

Description:
15A 125V 5-15R DPLX RCP

UPC:  78358540204

Part Number: HBL5262RFC2

UNSPSC: 39121406

Status:  UNKNOWN

Your Price:  $8.42 / EA


Quantity  EA

Specifications

Manufacturer Name P&S WIRING DEVICES (PASS & SEYMOUR)
MfgPartNo CRB5262
Additional Information Applicable Standard NEMA WD-1/WD-6; Overall Dimension 1.322 Inch W x 0.78 Inch D x 3.281 Inch H; Temperature Rating -40 to 60 Deg C
Amperage 15.0 A
Amperage Rating 15
Application Construction
Application Sector Commercial
Approval UL 498, FSUL WC596, CSA C22.2
Base Price 0.0000
Catalog Number CRB5262
Color Brown
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-15R
Connection Back and side wire
Connection Location Back and Side
Constructional Feature Corrosion Resistant, Impact Resistant
Country Code For ECCN MX
CountryOfOrigin MX
Current Rating 15 Ampere
DDCATEGORY 573
Dielectric Strength Withstands 2000V minimum
Directory CIS
Environmental Conditions Flammability: UL94 V2
Families 573
Family Color Brown
Family Description Receptacles & Surge Protectors
Features Single Piece Plated Steel Mounting Strap
Finish Matte
Ground Type Automatic Grounding
Height 3.281 in
Image Location * Image
Indoor Outdoor Indoor
Industry ELX
InvoiceDescription 15A 125V CONSTRUCT DUPLEX RECEPT BN;15A 125V 5-15R DPLX RCP
Item Number 21014
Long Description STRAIGHT BLADE RECEPTACLE, DUPLEX TYPE; THERMOPLASTIC (BACK BODY), NYLON (FACE) MATERIAL; BROWN COLOR; 5-15R CONFIGURATION; 3 WIRE(S); UL 498, FSUL WC596, CSA C22.2 APPROVAL; 125 VAC VOLTAGE RATING; 15 AMPERE CURRENT RATING; AUTOMATIC GROUNDING
MSDS Form Number *
Material Nylon;Thermoplastic (Back Body), Nylon (Face)
Model CRB5
Mounting Wall
NEMA Configuration Code 5-15R
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Receptacles 2.0
Number Of Wires 3
Outlet Type Straight Blade
Product Depth 0.78 in
Product Description 15A 125V 5-15R DPLX RCP
Product Height 2.635 in
Product Keywords WEBREADY
Product Name Electrical receptacles
Product Width 1.322 in
ProductLine P&S
Special Features Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
Standard CULUS, UL498, CSA C22.2 No. 42, FEDSPEC
Temperature Rating Maximum -40 F
Temperature Rating Minimum -40 F
Type Outlet;Duplex
UNSPSC 39121406
UPC 78500721014
Vendor Name PASS & SEYMOUR INC WIRING DEVICES & ACCESSORIES
Vendor Number 785007
Vendor Short Name P&S
Voltage 125.0 V
Voltage Rating 125;125 VAC
Wall Plate Included No
Warranty Type 1-Year Limited Warranty |
Wattage Electrical power is expressed in Amps and Volts.
Width .780 in
Wire Size 14 - 10
Wiring Back, Side

Resources

CatalogNumber CRB5262
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
