| Manufacturer Name | P&S WIRING DEVICES (PASS & SEYMOUR) |
| MfgPartNo | IG5362 |
| Additional Information | RoHS Compliant; Wire Size 14 to 10 AWG Copper; Overall Dimension 1.322 Inch Width x 0.922 Inch Depth x 3.281 Inch Height; Temperature Rating -40 to 60 Deg C; Flammability Rating UL 94-V2; Applicable Standard Federal Specification UL WC596, NEMA WD-1/WD-6 |
| Amperage | 20.0 A |
| Amperage Rating | 15 |
| Application | Residential/Commercial |
| Application Sector | Commercial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | IG5362 |
| Color | Orange |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-20R |
| Connection | Wire Ground |
| Connection Location | Back and Side |
| Constructional Feature | Corrosion Resistant |
| Country Code For ECCN | MX |
| CountryOfOrigin | MX |
| Current Rating | 20 Amp |
| DDCATEGORY | 573 |
| Directory | CIS |
| Families | 573 |
| Family Color | Orange |
| Family Description | Receptacles & Surge Protectors |
| Features | Single Piece Plated Steel Mounting Strap |
| Finish | Matte |
| Grade | Specification |
| Ground Type | Isolated Grounding |
| Image Location | * Image |
| Indoor Outdoor | Indoor |
| Industry | ELX |
| InvoiceDescription | RECEP DUP 20A COMMER ISOL GRD OR;20A DPLX RECEPTACLE |
| Item Number | 04534 |

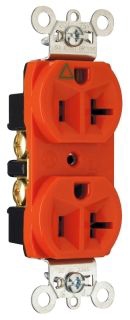

| Long Description | STRAIGHT BLADE RECEPTACLE, DUPLEX, HEAVY DUTY TYPE; PVC (BACK BODY), IMPACT RESISTANT NYLON (FACE) MATERIAL; ORANGE COLOR; 5-20R CONFIGURATION; 3 WIRE(S); SPECIFICATION GRADE; UL 498, CSA C22.2 APPROVAL; 125 VOLT AC VOLTAGE RATING; 20 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | PVC (Back Body), Impact Resistant Nylon (Face) |
| Material Quality | Thermoplastic |
| Mounting | Wall |
| NEMA Configuration Code | 5-20R |
| NEMA Rating | 5-15R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Receptacles | 2.0 |
| Number Of Wires | 3 |
| Operating Temperature | -40-60C |
| Outlet Type | Straight Blade, Isolated Ground |
| Product Depth | 0.922 in |
| Product Description | 20A DPLX RECEPTACLE |
| Product Height | 2.635 in |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| Product Width | 1.322 in |
| ProductLine | P&S |
| Size | 3.3 in |
| Special Features | Back & side wire, corrosion-resistant plated steel strap |
| Standard | CULUS, UL 498 |
| Type | Outlet;Duplex, Heavy Duty |
| UNSPSC | 39121406 |
| UPC | 78500704534 |
| Vendor Name | PASS & SEYMOUR INC WIRING DEVICES & ACCESSORIES |
| Vendor Number | 785007 |
| Vendor Short Name | P&S |
| Voltage | 125.0 V |
| Voltage Rating | 125;125 Volt AC |
| Wall Plate Included | No |
| Warranty Type | 1-Year Limited Warranty |
| Wire Connection Type | Internal Pressure Plates, Screw Terminals |
| Wire Size | 14 - 10 |
| Wiring | Back, Side |
