PANDUIT CORPORATION

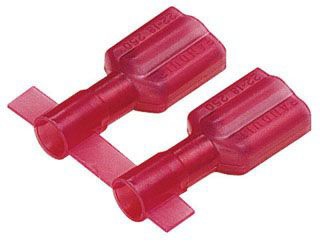

"Reel Smart DNF18-188FIB-3K Disconnect, Red, Nylon, 18-22 AWG, 0.187 x 0.02"" Tab"

Mouse over image to zoom, click to enlarge

Description:
"Reel Smart DNF18-188FIB-3K Disconnect, Red, Nylon, 18-22 AWG, 0.187 x 0.02"" Tab"

UPC:  07498370975

Part Number: DNF18-188FIB-3K

UNSPSC: 39121409

Status:  UNKNOWN

Retail Price:  $376.77 / EA
Log In for Pricing



Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo DNF18-188FIB-3K
Additional Information RoHS Compliant; Voltage Rating 600 Volt; Overall Dimension 0.78 Inch Length x 0.29 Inch Width x 0.16 Inch Height; Insulation Diameter 0.136 Inch; Base Material Brass
Approval UL 310, CSA C22.2
Brand Name Pan-Term[R]
Catalog Number DNF18-188FIB-3K
Color Red
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Funnel Entry
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Families 596
Family Description Small Terminals & Connectors
Finish Tinned
Image Location * Image
Industry ELX
Insulation Nylon
Insulation Type Nylon Fully Insulated
InvoiceDescription "Reel Smart DNF18-188FIB-3K Disconnect, Red, Nylon, 18-22 AWG, 0.187 x 0.02"" Tab";#18 NYL F DISC
Item Number 70975
Long Description FULLY INSULATED BUTTED FEMALE DISCONNECT, FUNNEL ENTRY, BUTTED SEAM TYPE; RED COLOR; 22 AWG MIN. CONDUCTOR SIZE; 18 AWG MAX. CONDUCTOR SIZE; UL 310, CSA C22.2 APPROVAL; 221 DEG F TEMPERATURE RATING; 3000 PER PACK STANDARD PACKAGE
MSDS Form Number *
Material Brass
Maximum Conductor Size 18 AWG
Minimum Conductor Size 22 AWG
Model DNF-FIB
Mounting 9/32 In.
Noun *
Product Description "Reel Smart DNF18-188FIB-3K Disconnect, Red, Nylon, 18-22 AWG, 0.187 x 0.02"" Tab"
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Standard UL 310, CSA 22.2 No.153
Standard Package 3000 per Pack
Tab Size 0.187 Inch x 0.02 Inch
Temperature Rating 221 Degrees Fahrenheit (105 Degrees Celsius);221 Deg F
Type Disconnect;Funnel Entry, Butted Seam
UNSPSC 39121409
UPC 07498370975
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600
Wire Size 18 AWG
