PAND HSTT06-Y

Dry-Shrink HSTT06-Y Heat Shrink

Page Loading...
PANDUIT CORPORATION
Dry-Shrink HSTT06-Y Heat Shrink

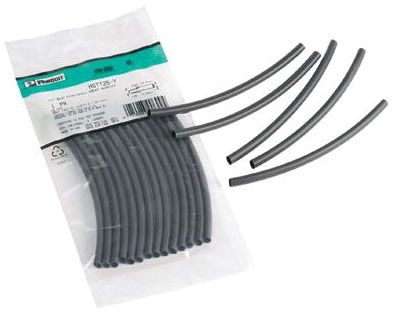

Mouse over image to zoom, click to enlarge

Description:
Dry-Shrink HSTT06-Y Heat Shrink

UPC:  07498390695

Part Number: HSTT06-Y

UNSPSC: 39121723

Status:  UNKNOWN

Retail Price:  $17.02 / EA
Log In for Pricing



Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo HSTT06-Y
Additional Information Applicable Standard MIL-DTL-23053/5; ROHS Compliant
Application For Dry Locations
Approval UL, CSA
Brand Name Dry-Shrink[TM]
Cable Size 18 AWG
Catalog Number HSTT06-Y
Color Black
Commerce Sector Construction Materials
Commodity Code 64340
Commodity Description Insulating Materials
CountryOfOrigin MUL
DDCATEGORY 1193
Directory CIS
Families 1193
Family Description Insulating Materials
Flammability Flame Retardant
Image Location * Image
Industry ELX
Inside Diameter After Heat Shrink 0.031 in
Inside Diameter Before Heat Shrink 0.031 in
InvoiceDescription Dry-Shrink HSTT06-Y Heat Shrink;HEAT SHRK TUBING
Item Number 90695
Length (26) 6 Inch
Long Description HEAT SHRINK TUBE, HEAT TYPE; FLAME RETARDANT CROSS LINKED POLYOLEFIN MATERIAL; BLACK COLOR; (26) 6 INCH; 0.063 INCH MIN. EXPANDED DIAMETER; 0.031 INCH MAX. RECOVERED DIAMETER; 18 AWG CABLE SIZE; UL, CSA APPROVAL; 600 V VOLTAGE RATING
MSDS Form Number *
Material Flame Retardant Cross Linked Polyolefin
Maximum Recovered Diameter 0.031 Inch
Minimum Expanded Diameter 0.063 Inch
Minimum Shrink Temperature 194 F
Model HSTT
Noun *
Operating Temperature Maximum 275 F
Operating Temperature Minimum 275 F
Outside Diameter 0.06 in
Product Description Dry-Shrink HSTT06-Y Heat Shrink
Product Keywords WEBREADY
Product Name Heat shrinkable tube
ProductLine PAND
Shrink Ratio 2:1
Shrink Temperature 194 Deg F
Standard UL Recognized, CSA Approved, MIL SPEC
Temperature Rating -67 to 275 Deg F
Thickness 0.017 in;0.017 Inch
Type Heat-Shrink;Heat
UNSPSC 39121723
UPC 07498390695
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Volume Resistivity Flame-Retardant
Wall Type Thin

Resources

CatalogNumber HSTT06-Y
Full Image
MsdsUrl

Package Information

SellPkgQty 1
