PAND HSTT09-C

Dry-Shrink HSTT09-C Heat Shrink

Page Loading...
PANDUIT CORPORATION

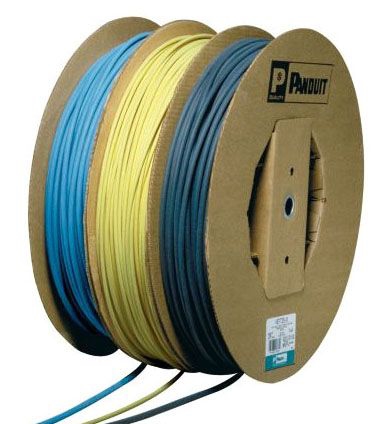

Dry-Shrink HSTT09-C Heat Shrink

Mouse over image to zoom, click to enlarge

Description:
Dry-Shrink HSTT09-C Heat Shrink

UPC:  07498374700

Part Number: HSTT09-C

UNSPSC: 39121723

Status:  UNKNOWN

Retail Price:  $88.66 / EA
Your Price:  $59.01 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo HSTT09-C
Additional Information Applicable Standard MIL-DTL-23053/5; ROHS Compliant
Application For Dry Locations
Approval UL, CSA
Base Price 0.0000
Brand Name Dry-Shrink[TM]
Catalog Number HSTT09-C
Color Black
Commerce Sector Construction Materials
Commodity Code 64340
Commodity Description Insulating Materials
CountryOfOrigin CHN
DDCATEGORY 1193
Directory CIS
Families 1193
Family Description Insulating Materials
Flammability Flame Retardant
Image Location * Image
Industry ELX
Inside Diameter After Heat Shrink 0.046 in
Inside Diameter Before Heat Shrink 0.046 in
InvoiceDescription Dry-Shrink HSTT09-C Heat Shrink;HEAT SHRK TUBING
Item Number 74700
Length 100 Ft Roll
Long Description HEAT SHRINK TUBE, HEAT TYPE; FLAME RETARDANT CROSS LINKED POLYOLEFIN MATERIAL; BLACK COLOR; 100 FT ROLL; 0.093 INCH MIN. EXPANDED DIAMETER; 0.046 INCH MAX. RECOVERED DIAMETER; UL, CSA APPROVAL; 600 V VOLTAGE RATING; 0.02 INCH THICKNESS
MSDS Form Number *
Material Flame Retardant Cross Linked Polyolefin
Maximum Recovered Diameter 0.046 Inch
Minimum Expanded Diameter 0.093 Inch
Minimum Shrink Temperature 194 F
Model HSTT
Noun *
Operating Temperature Maximum 275 F
Operating Temperature Minimum 275 F
Outside Diameter 0.093 in
Product Description Dry-Shrink HSTT09-C Heat Shrink
Product Keywords WEBREADY
Product Name Heat shrinkable tube
ProductLine PAND
Shrink Ratio 2:1
Shrink Temperature 194 Deg F
Standard UL Recognized, CSA Approved, MIL SPEC
Temperature Rating -67 to 275 Deg F
Thickness 0.02 in;0.02 Inch
Type Heat-Shrink;Heat
UNSPSC 39121723
UPC 07498374700
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Volume Resistivity Flame-Retardant
Wall Type Thin

Resources

CatalogNumber HSTT09-C
Full Image
MsdsUrl

Package Information

SellPkgQty 1

Time Zone
