PAND HSTT38-C5

Dry-Shrink HSTT38-C5 Heat Shrink

Page Loading...
PANDUIT CORPORATION
Dry-Shrink HSTT38-C5 Heat Shrink

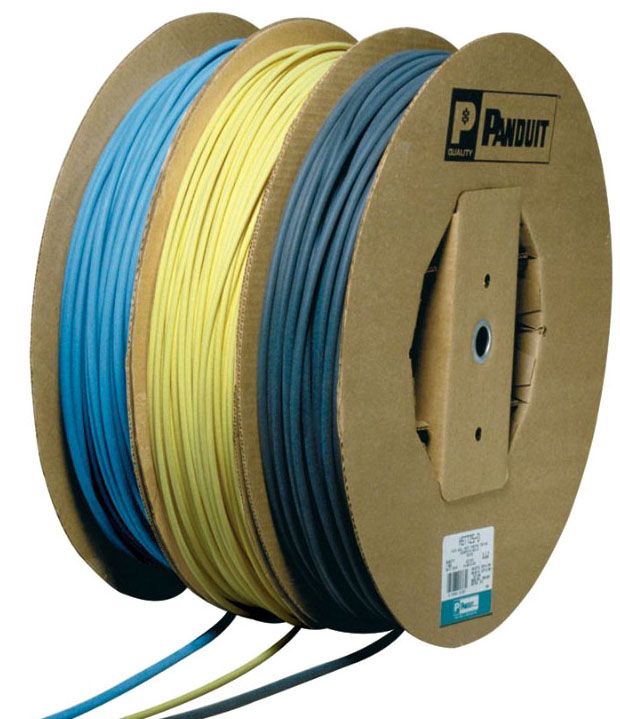

Mouse over image to zoom, click to enlarge

Description:
Dry-Shrink HSTT38-C5 Heat Shrink

UPC:  07498384894

Part Number: HSTT38-C5

UNSPSC: 39121723

Status:  UNKNOWN

Your Price:  $104.53 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo HSTT38-C5
Additional Information RoHS Compliant; Application Insulating, Protecting and Color Coding Wire and Cable, Dry Location
Application For Dry Locations
Approval UL, CSA
Base Price 0.0000
Brand Name Dry-Shrink[TM]
Catalog Number HSTT38-C5
Color Green
Commerce Sector Construction Materials
Commodity Code 64340
Commodity Description Insulating Materials
CountryOfOrigin CHN
DDCATEGORY 1193
Directory CIS
Families 1193
Family Description Insulating Materials
Flammability Flame Retardant
Image Location * Image
Industry ELX
Inside Diameter After Heat Shrink 0.187 in
Inside Diameter Before Heat Shrink 0.187 in
InvoiceDescription Dry-Shrink HSTT38-C5 Heat Shrink;HEAT SHRK TUBING
Item Number 84894
Length 100 Foot per Reel
Long Description HEAT SHRINK TUBE, HEAT TYPE; FLAME RETARDANT CROSS-LINKED POLYOLEFIN MATERIAL; GREEN COLOR; 100 FOOT PER REEL; 0.375 INCH MIN. EXPANDED DIAMETER; 0.187 INCH MAX. RECOVERED DIAMETER; UL, CSA APPROVAL; 600 VOLT VOLTAGE RATING; 0.025 INCH THICKNESS
MSDS Form Number *
Material Flame Retardant Cross-Linked Polyolefin
Maximum Recovered Diameter 0.187 Inch
Minimum Expanded Diameter 0.375 Inch
Minimum Shrink Temperature 194 F
Model HSTT
Noun *
Operating Temperature Maximum 275 F
Operating Temperature Minimum 275 F
Outside Diameter 0.37 in
Product Description Dry-Shrink HSTT38-C5 Heat Shrink
Product Keywords WEBREADY
Product Name Heat shrinkable tube
ProductLine PAND
Shrink Ratio 2:1
Standard UL Recognized, CSA Approved, MIL SPEC
Temperature Rating -67 to 275 Deg C
Thickness 0.025 in;0.025 Inch
Type Heat-Shrink;Heat
UNSPSC 39121723
UPC 07498384894
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 Volt
Volume Resistivity Flame-Retardant
Wall Type Thin

Resources

CatalogNumber HSTT38-C5
Full Image
MsdsUrl

Package Information

SellPkgQty 1

Time Zone
