PAND HSTT50-48-545

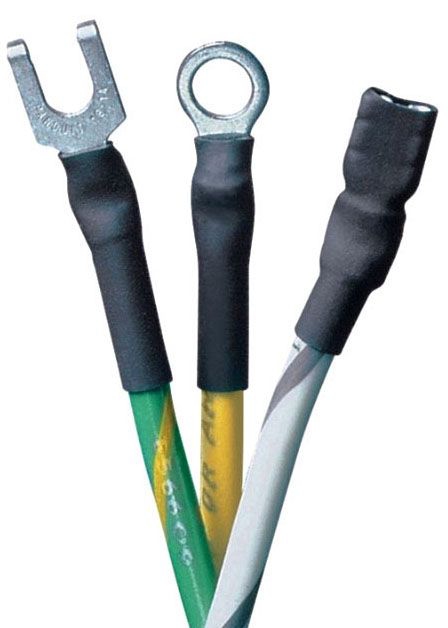

Dry-Shrink HSTT50-48-545 Heat Shrink

Page Loading...
PANDUIT CORPORATION
Dry-Shrink HSTT50-48-545 Heat Shrink

Mouse over image to zoom, click to enlarge

Description:
Dry-Shrink HSTT50-48-545 Heat Shrink

UPC:  07498352063

Part Number: HSTT50-48-545

UNSPSC: 39121723

Status:  UNKNOWN

Your Price:  $8.22 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo HSTT50-48-545
Additional Information Applicable Standard MIL-DTL-23053/5; ROHS Compliant
Application For Dry Locations
Approval UL, CSA
Base Price 0.0000
Brand Name Dry-Shrink[TM]
Catalog Number HSTT50-48-545
Color Yellow/Green;Yellow with Green Stripe
Commerce Sector Construction Materials
Commodity Code 64340
Commodity Description Insulating Materials
CountryOfOrigin DEU
DDCATEGORY 1193
Directory CIS
Families 1193
Family Description Insulating Materials
Flammability Flame Retardant
Image Location * Image
Industry ELX
Inside Diameter After Heat Shrink 0.25 in
Inside Diameter Before Heat Shrink 0.25 in
InvoiceDescription Dry-Shrink HSTT50-48-545 Heat Shrink;HEAT SHRK TUBING
Item Number 52063
Length (5) 48 Inch
Long Description HEAT SHRINK TUBE, HEAT TYPE; FLAME RETARDANT CROSS LINKED POLYOLEFIN MATERIAL; YELLOW WITH GREEN STRIPE COLOR; (5) 48 INCH; 0.5 INCH MIN. EXPANDED DIAMETER; 0.25 INCH MAX. RECOVERED DIAMETER; UL, CSA APPROVAL; 600 V VOLTAGE RATING; 0.025 INCH THICKNESS
MSDS Form Number *
Material Flame Retardant Cross Linked Polyolefin
Maximum Recovered Diameter 0.25 Inch
Minimum Expanded Diameter 0.5 Inch
Minimum Shrink Temperature 194 F
Model HSTT
Noun *
Operating Temperature Maximum 275 F
Operating Temperature Minimum 275 F
Outside Diameter 0.5 in
Product Description Dry-Shrink HSTT50-48-545 Heat Shrink
Product Keywords WEBREADY
Product Name Heat shrinkable tube
ProductLine PAND
Shrink Ratio 3:1;2:1
Shrink Temperature 194 Deg F
Standard UL Recognized, CSA Approved, MIL SPEC
Temperature Rating -67 to 275 Deg F
Thickness 0.025 in;0.025 Inch
Type Heat-Shrink;Heat
UNSPSC 39121723
UPC 07498352063
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Volume Resistivity Flame-Retardant
Wall Type Thin
