PAND HSTT75-C2

Dry-Shrink HSTT75-C2 Heat Shrink

Page Loading...
PANDUIT CORPORATION

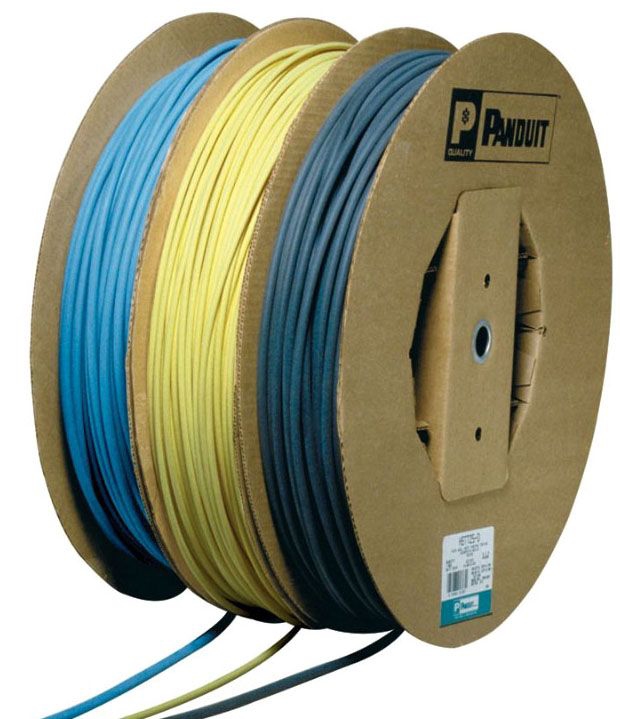

Dry-Shrink HSTT75-C2 Heat Shrink

Mouse over image to zoom, click to enlarge

Description:
Dry-Shrink HSTT75-C2 Heat Shrink

UPC:  07498374714

Part Number: HSTT75-C2

UNSPSC: 39121723

Status:  UNKNOWN

Retail Price:  $237.47 / EA
Log In for Pricing



Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo HSTT75-C2
Additional Information RoHS Compliant; Applicable Standard MIL-AMS-DTL-23053/5; Application Insulating, Protecting, Color Coding Wire, Cable and Dry Location
Application For Dry Locations
Approval UL, CSA
Brand Name Dry-Shrink[TM]
Catalog Number HSTT75-C2
Color Red
Commerce Sector Construction Materials
Commodity Code 64340
Commodity Description Insulating Materials
CountryOfOrigin CHN
DDCATEGORY 1193
Directory CIS
Families 1193
Family Description Insulating Materials
Flammability Flame Retardant
Image Location * Image
Industry ELX
Inside Diameter After Heat Shrink 0.375 in
Inside Diameter Before Heat Shrink 0.375 in
InvoiceDescription Dry-Shrink HSTT75-C2 Heat Shrink;HEAT SHRK TUBING
Item Number 74714
Length 100 Foot
Long Description HEAT SHRINK TUBE, HEAT TYPE; FLAME RETARDANT CROSS-LINKED POLYOLEFIN MATERIAL; RED COLOR; 100 FOOT; 0.75 INCH MIN. EXPANDED DIAMETER; 0.375 INCH MAX. RECOVERED DIAMETER; UL, CSA APPROVAL; 600 VOLT VOLTAGE RATING; 0.03 INCH THICKNESS
MSDS Form Number *
Material Flame Retardant Cross-Linked Polyolefin
Maximum Recovered Diameter 0.375 Inch
Minimum Expanded Diameter 0.75 Inch
Minimum Shrink Temperature 194 F
Noun *
Operating Temperature Maximum 275 F
Operating Temperature Minimum 275 F
Outside Diameter 0.75 in
Product Description Dry-Shrink HSTT75-C2 Heat Shrink
Product Keywords WEBREADY
Product Name Heat shrinkable tube
ProductLine PAND
Shrink Ratio 2:1
Shrink Temperature 194 Deg F
Standard UL Recognized, CSA Approved, MIL SPEC
Temperature Rating -67 to 275 Deg F
Thickness 0.03 in;0.03 Inch
Type Heat-Shrink;Heat
UNSPSC 39121723
UPC 07498374714
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 Volt
Volume Resistivity Flame-Retardant
Wall Type Thin

Resources

CatalogNumber HSTT75-C2
Full Image
MsdsUrl

Package Information

SellPkgQty 1
