PAND HSTTA150-48-Q

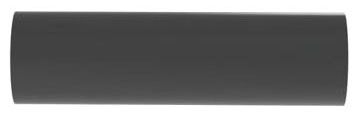

"Damp-Shrink HSTTA150-48-Q Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5"" to .51"" ID"

Page Loading...
PANDUIT CORPORATION
"Damp-Shrink HSTTA150-48-Q Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5"" to .51"" ID"

Mouse over image to zoom, click to enlarge

Description:
"Damp-Shrink HSTTA150-48-Q Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5"" to .51"" ID"

UPC:  07498378479

Part Number: HSTTA150-48-Q

UNSPSC: 39121723

Status:  UNKNOWN

Retail Price:  $58.52 / EA
Your Price:  $44.38 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo HSTTA150-48-Q
Additional Information APPLICABLE STANDARD MIL-DTL-23053/4; APPLICATION DAMP LOCATION
Application For Damp Locations; Insulating and protecting wires and cables
Base Price 0.0000
Brand Name Panduit;PAN-SHRINK[T]
Catalog Number HSTTA150-48-Q
Color Black;BLACK
Commerce Sector Construction Materials
Commodity Code 64340
Commodity Description Insulating Materials
Continuous Operating Temperature 230 F
CountryOfOrigin KOR
DDCATEGORY 1193
Directory CIS
Families 1193
Family Description Insulating Materials
Flammability Flame retardant outer wall meets UL 224 VW-1
Image Location * Image
Industry ELX
Inside Diameter 0.51 In.
InvoiceDescription Damp-Shrink HSTTA150-48-Q Heatshrink, B;HEAT SHRK TUBING
Item Number 78479
Length (25) 4 FT
Long Description HEAT SHRINK TUBE, HEAT TYPE; CROSS LINKED POLYOLEFIN MATERIAL; BLACK COLOR; (25) 4 FT; 1.5 INCH MIN. EXPANDED DIAMETER; 0.51 INCH MAX. RECOVERED DIAMETER; 600 V VOLTAGE RATING; 0.1 INCH THICKNESS; -67 TO 230 DEG F TEMPERATURE RATING; 3:1 SHRINK RATIO
MSDS Form Number *
Material CROSS LINKED POLYOLEFIN
Maximum Recovered Diameter 0.51 INCH
Minimum Expanded Diameter 1.5 INCH
Minimum Shrink Temperature 248 F
Model HSTTA
Noun *
Outside Diameter 1.5 In.
Product Description "Damp-Shrink HSTTA150-48-Q Heatshrink, Blk, Adh. Lined PO, 4' L, 1.5"" to .51"" ID"
Product Keywords WEBREADY
Product Name Heat shrinkable tube
ProductLine PAND
Shrink Ratio 3:1
Shrink Temperature 250 DEG F
Standard UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3
Sub Brand Damp-Shrink
Temperature Rating -67 TO 230 DEG F
Thickness 0.1 In.;0.1 INCH
Type Heat Shrink;HEAT
UNSPSC 39121723
UPC 07498378479
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Volume Resistivity Outer wall is flame retardant; Suitable for damp locations
Wall Type THIN

Resources

CatalogNumber HSTTA150-48-Q
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
