PAND HSTTVA75-Y

Damp-Shrink HSTTVA75-Y Heat Shrink

Page Loading...
PANDUIT CORPORATION

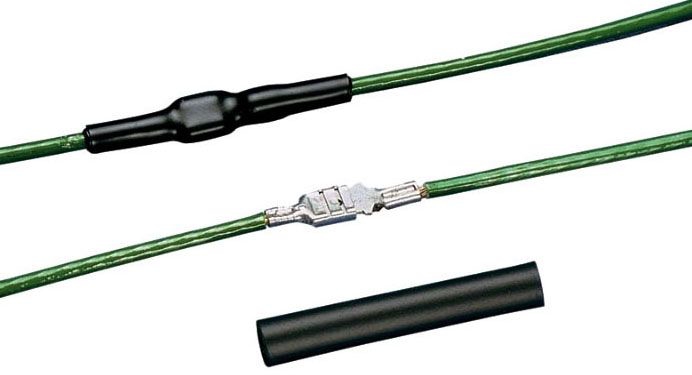

Damp-Shrink HSTTVA75-Y Heat Shrink

Mouse over image to zoom, click to enlarge

Description:
Damp-Shrink HSTTVA75-Y Heat Shrink

UPC:  07498361750

Part Number: HSTTVA75-Y

UNSPSC: 39121723

Status:  UNKNOWN

Retail Price:  $17.02 / EA
Your Price:  $12.91 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo HSTTVA75-Y
Additional Information Applicable Standard MIL-DTL-23053/4; ROHS Compliant
Application Heat Shrink for damp applications. Provides excellent abrasion protection for insulating and protecting wires and cables
Base Price 0.0000
Brand Name Panduit;Damp-Shrink[TM]
Catalog Number HSTTVA75-Y
Color Black
Commerce Sector Construction Materials
Commodity Code 64340
Commodity Description Insulating Materials
Continuous Operating Temperature 230 F
CountryOfOrigin KOR
DDCATEGORY 1193
Directory CIS
Families 1193
Family Description Insulating Materials
Flammability Flame retardant outer wall meets UL 224 VW-1
Image Location * Image
Industry ELX
Inside Diameter 0.375 In.
InvoiceDescription Damp-Shrink HSTTVA75-Y Heat Shrink;HEAT SHRK TUBING
Item Number 61750
Length (3) 6 Inch
Long Description HEAT SHRINK TUBE, HEAT TYPE; CROSS LINKED POLYOLEFIN MATERIAL; BLACK COLOR; (3) 6 INCH; 0.75 INCH MIN. EXPANDED DIAMETER; 0.375 INCH MAX. RECOVERED DIAMETER; 600 V VOLTAGE RATING; 0.037 INCH THICKNESS; -67 TO 230 DEG F TEMPERATURE RATING
MSDS Form Number *
Material Cross Linked Polyolefin
Maximum Recovered Diameter 0.375 Inch
Minimum Expanded Diameter 0.75 Inch
Minimum Shrink Temperature 248 F
Model HSTTVA
Noun *
Outside Diameter 0.75 In.
Product Description Damp-Shrink HSTTVA75-Y Heat Shrink
Product Keywords WEBREADY
Product Name Heat shrinkable tube
ProductLine PAND
Shrink Ratio 2:1
Shrink Temperature 248 Deg F
Standard UL Recognized, MIL SPEC
Sub Brand Damp-Shrink
Temperature Rating -67 to 230 Deg F
Thickness 0.035 In.;0.037 Inch
Type Heat Shrink;Heat
UNSPSC 39121723
UPC 07498361750
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Wall Type Thin, Flexible Adhesive Lined
