PAND LCA1/0-38-X

"Pan-Lug LCA1/0-38-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

Page Loading...
PANDUIT CORPORATION
"Pan-Lug LCA1/0-38-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

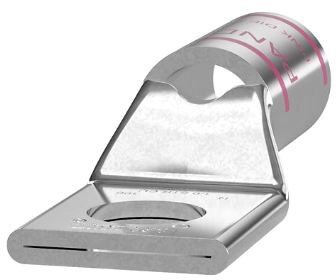

Mouse over image to zoom, click to enlarge

Description:
"Pan-Lug LCA1/0-38-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

UPC:  07498390026

Part Number: LCA1/0-38-X

UNSPSC: 39121405

Status:  UNKNOWN

Retail Price:  $1,078.69 / EA
Your Price:  $5.67 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo LCA1/0-38-X
Additional Information RoHS Compliant; Wire Strip Length 1 Inch; Includes Inspection Window; Temperature Rating 90 Deg C
Angle Straight
Approval UL 486A/B, CSA C22.2
Barrel Length 0.94 Inch
Barrel Type Standard
Base Price 0.0000
Brand Name Pan-Lug[TM]
Catalog Number LCA1/0-38-X
Color Pink
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 1/0 AWG
CountryOfOrigin MEX
DDCATEGORY 597
Die Index P42, 12 (Burndy), 42 (T and B)
Directory CIS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
InvoiceDescription "Pan-Lug LCA1/0-38-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10";1/0AWG 1HOLE LUG
Item Number 90026
Long Description COMPRESSION CONNECTOR, TIN PLATED COPPER MATERIAL; PINK COLOR; 2.08 INCH OVERALL LENGTH; 0.94 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 486A/B, CSA C22.2 APPROVAL; 35 KILOVOLT VOLTAGE RATING; 1/0 AWG CONDUCTOR SIZE; 3/8 INCH STUD SIZE
MSDS Form Number *
Material Copper;Tin Plated Copper
Model LCA
Mounting 1 In.
Noun *
Number Of Holes 1
Number Of Pad Holes 1
Overall Length 2.08 Inch
Pad Size 0.76 Inch Width x 0.12 Inch Thickness
Product Description "Pan-Lug LCA1/0-38-X Comp. Lug, 1/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"
Product Keywords WEBREADY
Product Name Cable or wire lugs
ProductLine PAND
Size 1/0 AWG Code
Special Features Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Stud Size 3/8 In.;3/8 Inch
Type Compression Lug
UNSPSC 39121405
UPC 07498390026
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 35 Kilovolt

Resources

CatalogNumber LCA1/0-38-X
Full Image

Package Information

SellPkgQty 1
