PAND LCA250-38-X

"Pan-Lug LCA250-38-X Comp. Lug, 250, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

Page Loading...
PANDUIT CORPORATION

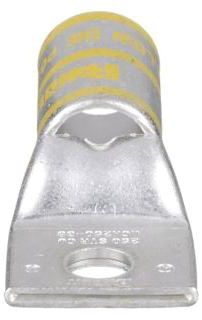

"Pan-Lug LCA250-38-X Comp. Lug, 250, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

Mouse over image to zoom, click to enlarge

Description:
"Pan-Lug LCA250-38-X Comp. Lug, 250, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

UPC:  07498390194

Part Number: LCA250-38-X

UNSPSC: 39121405

Status:  UNKNOWN

Retail Price:  $2,119.30 / EA
Your Price:  $11.14 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo LCA250-38-X
Additional Information RoHS Compliant; Wire Strip Length 1.31 Inch; Temperature Rating 90 Deg C
Angle Straight
Approval UL 486A/B, CSA C22.2
Barrel Length 1.25 Inch
Barrel Type Standard
Base Price 0.0000
Brand Name Pan-Lug[TM]
Catalog Number LCA250-38-X
Color Yellow
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 250 KCMIL
CountryOfOrigin MEX
DDCATEGORY 597
Die Index P62, 16 (Burndy), 62 (T and B)
Directory CIS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
InvoiceDescription "Pan-Lug LCA250-38-X Comp. Lug, 250, Tin Plt Copper, Strt, One 3/8"" Stud, PK10";250MCM 1HOLE LUG
Item Number 90194
Long Description COMPRESSION CONNECTOR, TIN PLATED COPPER MATERIAL; YELLOW COLOR; 2.55 INCH OVERALL LENGTH; 1.25 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 486A/B, CSA C22.2 APPROVAL; 35 KILOVOLT VOLTAGE RATING; 250 KCMIL CONDUCTOR SIZE; 3/8 INCH STUD SIZE
MSDS Form Number *
Material Tin-Plated Copper;Tin Plated Copper
Model LCA
Mounting 1-5/16 In.
Noun *
Number Of Holes 1
Number Of Pad Holes 1
Overall Length 2.55 Inch
Pad Size 1.17 Inch Width x 0.14 Inch Thickness
Product Description "Pan-Lug LCA250-38-X Comp. Lug, 250, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"
Product Keywords WEBREADY
Product Name Cable or wire lugs
ProductLine PAND
Size 250 kcmil Code
Special Features Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Stud Size 3/8 In.;3/8 Inch
Type Compression Lug
UNSPSC 39121405
UPC 07498390194
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 35 Kilovolt

Resources

CatalogNumber LCA250-38-X
Full Image

Package Information

SellPkgQty 1
