PAND LCA300-12-X

Pan-Lug LCA300-12-X Copper Compression Connectors - Lugs

Page Loading...
PANDUIT CORPORATION

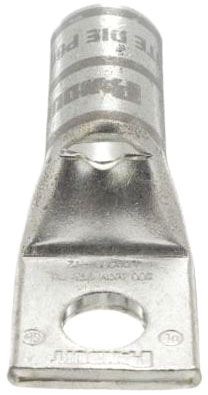

Pan-Lug LCA300-12-X Copper Compression Connectors - Lugs

Mouse over image to zoom, click to enlarge

Description:
Pan-Lug LCA300-12-X Copper Compression Connectors - Lugs

UPC:  07498390050

Part Number: LCA300-12-X

UNSPSC: 39121405

Status:  UNKNOWN

Retail Price:  $2,461.50 / EA
Your Price:  $12.94 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo LCA300-12-X
Additional Information Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
Angle Straight
Approval UL 486A/486B, CSA C22.2
Barrel Length 1.44 Inch
Barrel Type Standard
Base Price 0.0000
Brand Name Pan-Lug[TM]
Catalog Number LCA300-12-X
Color White
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 300 KCMIL
CountryOfOrigin MEX
DDCATEGORY 597
Die Index P66, 17 (Burndy), 66 (T and B)
Directory CIS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
InvoiceDescription Pan-Lug LCA300-12-X Copper Compression Connectors - Lugs;300MCM 1HOLE LUG
Item Number 90050
Long Description COMPRESSION CONNECTOR, ELECTRO TIN PLATED COPPER MATERIAL; WHITE COLOR; 3.05 INCH OVERALL LENGTH; 1.44 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 486A/486B, CSA C22.2 APPROVAL; 35 KV VOLTAGE RATING; 300 KCMIL CONDUCTOR SIZE; 1/2 INCH STUD SIZE
MSDS Form Number *
Material Tin-Plated Copper;Electro Tin Plated Copper
Model LCA
Mounting 1-1/2 In.
Noun *
Number Of Holes 1
Number Of Pad Holes 1
Overall Length 3.05 Inch
Pad Size 1.19 Inch W x 0.16 Inch Thk
Product Description Pan-Lug LCA300-12-X Copper Compression Connectors - Lugs
Product Keywords WEBREADY
Product Name Cable or wire lugs
ProductLine PAND
Size 300 kcmil Code
Special Features Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Stud Size 1/2 In.;1/2 Inch
Type Compression Lug
UNSPSC 39121405
UPC 07498390050
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 35 KV

Resources

CatalogNumber LCA300-12-X
Full Image

Package Information

SellPkgQty 1
