PAND LCA4/0-38-X

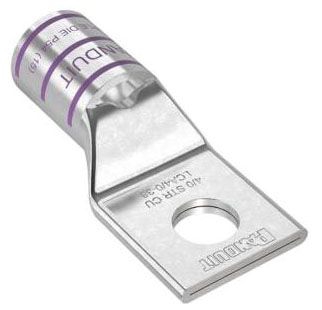

"Pan-Lug LCA4/0-38-X Comp. Lug, 4/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

Page Loading...
PANDUIT CORPORATION
"Pan-Lug LCA4/0-38-X Comp. Lug, 4/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

Mouse over image to zoom, click to enlarge

Description:
"Pan-Lug LCA4/0-38-X Comp. Lug, 4/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"

UPC:  07498390040

Part Number: LCA4/0-38-X

UNSPSC: 39121405

Status:  UNKNOWN

Retail Price:  $1,692.65 / EA
Your Price:  $8.78 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo LCA4/0-38-X
Additional Information RoHS Compliant; Wire Strip Length 1-1/4 Inch; Includes Inspection Window; Temperature Rating 90 Deg C
Angle Straight
Approval UL 486A/B, CSA C22.2
Barrel Length 1.19 Inch
Barrel Type Standard Barrel with Inspection Window
Base Price 0.0000
Brand Name Panduit;Pan-Lug[TM]
Catalog Number LCA4/0-38-X
Color Purple
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 4/0 AWG
CountryOfOrigin MEX
DDCATEGORY 597
Die Index P54, 15 (Burndy), 54 (T and B)
Directory CIS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
InvoiceDescription Pan-Lug LCA4/0-38-X Comp. Lug, 4/0, Tin;4/0AWG 1HOLE LUG
Item Number 90040
Long Description COMPRESSION CONNECTOR, TIN PLATED COPPER MATERIAL; PURPLE COLOR; 2.45 INCH OVERALL LENGTH; 1.19 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 486A/B, CSA C22.2 APPROVAL; 35 KILOVOLT VOLTAGE RATING; 4/0 AWG CONDUCTOR SIZE; 3/8 INCH STUD SIZE
MSDS Form Number *
Material Copper;Tin Plated Copper
Model LCA
Mounting 1-1/4
Noun *
Number Of Holes 1
Number Of Pad Holes 1
Overall Length 2.45 Inch
Pad Size 1.06 Inch Width x 0.14 Inch Thickness
Product Description "Pan-Lug LCA4/0-38-X Comp. Lug, 4/0, Tin Plt Copper, Strt, One 3/8"" Stud, PK10"
Product Keywords WEBREADY
Product Name Cable or wire lugs
ProductLine PAND
Size 4/0 AWG Code
Special Features Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard C22.2 No. 65-13, 486A-486B File #E52164
Stud Size 3/8 In.;3/8 Inch
Sub Brand Pan-Lug
Type Copper Compression Connectors - Lugs
UNSPSC 39121405
UPC 07498390040
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 35 Kilovolt
