PAND LCAF4/0-38-X

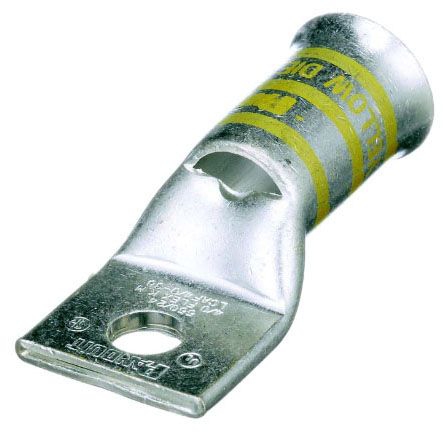

"Pan-Lug LCAF4/0-38-X Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One .37"" Stud"

Page Loading...
PANDUIT CORPORATION
"Pan-Lug LCAF4/0-38-X Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One .37"" Stud"

Mouse over image to zoom, click to enlarge

Description:
"Pan-Lug LCAF4/0-38-X Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One .37"" Stud"

UPC:  07498355795

Part Number: LCAF4/0-38-X

UNSPSC: 39121405

Status:  UNKNOWN

Your Price:  $10.81 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo LCAF4/0-38-X
Additional Information Includes Inspection Window; Temperature Rating 90 Deg C; ROHS Compliant
Angle Straight
Approval UL, CSA
Barrel Length 1.35 Inch
Barrel Type Standard
Base Price 0.0000
Brand Name Pan-Lug[TM]
Catalog Number LCAF4/0-38-X
Color Yellow
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 4/0 AWG (Flex Class K/M, Diesel Locomotive)
CountryOfOrigin MEX
DDCATEGORY 597
Die Index P62
Directory CIS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
InvoiceDescription "Pan-Lug LCAF4/0-38-X Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One .37"" Stud";4/0AWG 1HOLE LUG
Item Number 55795
Long Description COMPRESSION CONNECTOR, ELECTRO TIN PLATED COPPER MATERIAL; YELLOW COLOR; 2.65 INCH OVERALL LENGTH; 1.35 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KV VOLTAGE RATING; 4/0 AWG (FLEX CLASS K/M, DIESEL LOCOMOTIVE) CONDUCTOR SIZE
MSDS Form Number *
Material Tin Plated Copper;Electro Tin Plated Copper
Model LCAF
Mounting 1-7/16 In.
Noun *
Number Of Holes 1
Number Of Pad Holes 1
Overall Length 2.65 Inch
Pad Size 1.17 Inch W x 0.14 Inch Thk
Product Description "Pan-Lug LCAF4/0-38-X Comp. Lug, 4/0, Flare, Tin Plt Copper, Strt, One .37"" Stud"
Product Keywords WEBREADY
Product Name Cable or wire lugs
ProductLine PAND
Size 4/0 AWG Class K and M and DLO
Special Features Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Standard UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
Stud Size 3/8 In.;3/8 Inch
Type Compression Lug
UNSPSC 39121405
UPC 07498355795
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 35 KV

Resources

CatalogNumber LCAF4/0-38-X
Full Image

Package Information

SellPkgQty 1
