PAND LDPH10IG10-A

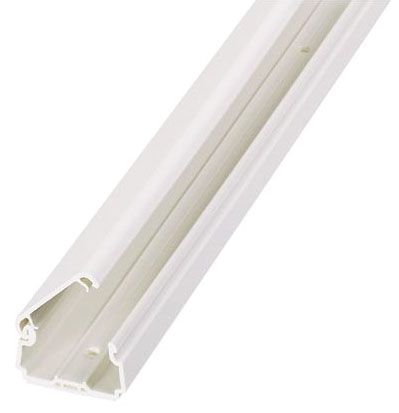

Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 10 ft, Int. Gray

Page Loading...
PANDUIT CORPORATION
Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 10 ft, Int. Gray

Mouse over image to zoom, click to enlarge

Description:
Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 10 ft, Int. Gray

UPC:  07498334417

Part Number: LDPH10IG10-A

UNSPSC: 39131710

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo LDPH10IG10-A
Additional Information Cross Sectional Area 0.89 Sq Inch; ROHS Compliant
Application Pan-Way LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes
Approval UL 5A, UL (Canada and US), CSA C22.2, CE
Back Type Adhesive
Base Price 0.0000
Brand Name Pan-Way[R]
Cable Type Communication, Coaxial, Data, Fiber Optic, Power
Catalog Number LDPH10IG10-A
Color International Gray
Commerce Sector Construction Materials
Commodity Code 57270
Commodity Description Ducts, Raceways, Runways, Trays
CountryOfOrigin USA
DDCATEGORY 1157
Directory CIS
Families 1157
Family Description Ducts, Raceways, Runways, Trays
Finish International Gray
Height 0.86 Inch
Image Location * Image
Industry ELX
InvoiceDescription Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 10 ft, Int. Gray;HINGED LDP RCWY
Item Number 34417
Length NA in;10 Ft
Long Description SURFACE RACEWAY, 2-PIECE LATCHING SINGLE CHANNEL TYPE; RIGID PVC MATERIAL; INTERNATIONAL GRAY FINISH; 10 FT; 1.52 INCH; 0.86 INCH; COMMUNICATION, COAXIAL, DATA, FIBER OPTIC, POWER CABLE TYPE; UL 5A, UL (CANADA AND US), CSA C22.2, CE APPROVAL
MSDS Form Number *
Material Polyvinyl Chloride (PVC);Rigid PVC
Model LDPH10
Noun *
Product Description Surface Raceway, LDPH10 Pwr Rated,2-pc Latch, 10 ft, Int. Gray
Product Keywords WEBREADY
Product Name Wireway
ProductLine PAND
Standard Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
Standard Package 200 Ft of 10 Ft Length
Type Power Rated Channel;2-Piece Latching Single Channel
UNSPSC 39131710
UPC 07498334417
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Width 1.52 in;1.52 Inch
