PAND MP588-C

Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 100 Pack

Page Loading...
PANDUIT CORPORATION

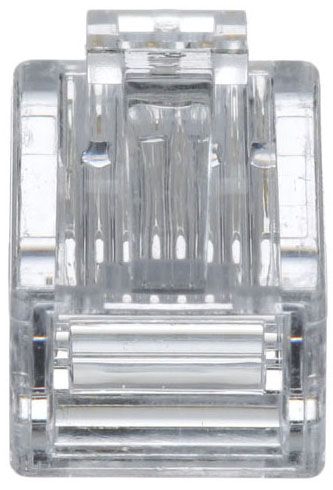

Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 100 Pack

Mouse over image to zoom, click to enlarge

Description:
Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 100 Pack

UPC:  07498374552

Part Number: MP588-C

UNSPSC: 43223301

Status:  UNKNOWN

Your Price:  $0.84 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo MP588-C
Additional Information Applicable Standard ANSI/TIA 968-A, IEEE 802.3AF/ IEEE 802.3AT, IEC 60603-7; Size 0.46 Inch W x 0.9 Inch D x 0.32 Inch H; Temperature Range -10 to 60 Deg C; Used On Category 5E UTPCH Series Patch Cord; ROHS Compliant
Application Unshielded
Approval UL 1863, CSA C22.2
Base Price 0.0000
Body Finish Clear
Body Material Polycarbonate
Brand Name Panduit;Pan-Plug[R]
Cable Entry T568A/T568B
Cable Type UTP
Catalog Number MP588-C
Color Colorless
Commerce Sector Construction Materials
Commodity Code 51300
Commodity Description Plugs,Conn,Inlets,Outlets,Lampholdr
Conductor Insulation Outer Diameter 0.04 Inch
Conductor Size 24 AWG Solid/Stranded
Configuration Latched
Contact Material Gold Plated Electro Phosphor Bronze
CountryOfOrigin CRI
DDCATEGORY 574
Depth NA In.
Directory CIS
Environmental Conditions Indoor
Families 574
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Image Location * Image
Industry ELX
InvoiceDescription Pan-Plug Modular Plug, Category 5e, 24;8POS 8WIRE MODULAR PLG
Item Number 74552
Long Description MODULAR PLUG, UTP CABLE TYPE; LATCHED CONFIGURATION; UL 1863, CSA C22.2 APPROVAL; 100 STANDARD PACKAGE; POLYCARBONATE BODY MATERIAL; 24 AWG SOLID/STRANDED CONDUCTOR SIZE; 8 POSITION(S); GOLD PLATED ELECTRO PHOSPHOR BRONZE CONTACT MATERIAL
MSDS Form Number *
Material Polycarbonate
Model Plug;MP
Noun *
Number Of Pins 8
Number Of Positions 8
Product Description Pan-Plug Modular Plug, Category 5e, 24-26 AWG, 100 Pack
Product Keywords WEBREADY
Product Name Datacom cross connect system and accessories
ProductLine PAND
Standard Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant
Standard Package 100
Sub Brand Pan-Plug
Type Modular Plug
UNSPSC 43223301
UPC 07498374552
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Width 0.46 In.

Resources

CatalogNumber MP588-C
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
