PAND P10-8R-L

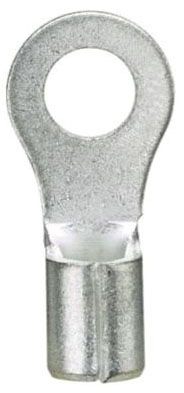

Pan-Term P10-8R-L Ring Terminal

Page Loading...
PANDUIT CORPORATION
Pan-Term P10-8R-L Ring Terminal

Mouse over image to zoom, click to enlarge

Description:
Pan-Term P10-8R-L Ring Terminal

UPC:  07498380230

Part Number: P10-8R-L

UNSPSC: 39121409

Status:  UNKNOWN

Your Price:  $0.41 / EA


Quantity  EA
Note: this product is only sold in multiples of 50 items

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo P10-8R-L
Additional Information RoHS Compliant; Barrel Type Brazed Seam; Voltage Rating 2000 Volt; Material Electrolytic Tin Plated Copper; Overall Dimension 0.78 Inch Length x 0.31 Inch Width
Approval UL 486A/B, UL (Canada and US), CSA C22.2
Base Price 0.0000
Brand Name Pan-Term[R]
Catalog Number P10-8R-L
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Standard
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Enclosure Ring shape
Families 596
Family Description Small Terminals & Connectors
Finish Tinned
Image Location * Image
Industry ELX
Insulation None
Insulation Type Non-Insulated
InvoiceDescription Pan-Term P10-8R-L Ring Terminal;#10 N/I RG TERM
Item Number 80230
Long Description NON-INSULATED RING TERMINAL, STANDARD TYPE; 14 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL 486A/B, UL (CANADA AND US), CSA C22.2 APPROVAL; 302 DEG F TEMPERATURE RATING; 50 PER PACK STANDARD PACKAGE; #8 STUD SIZE; NON-INSULATED INSULATION TYPE
MSDS Form Number *
Material Copper
Maximum Conductor Size 10 AWG
Minimum Conductor Size 14 AWG
Model P-R
Mounting 9/32 In.
Noun *
Product Description Pan-Term P10-8R-L Ring Terminal
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Size #8
Standard UL Listed 587H E52164, CSA Certified LR31212
Standard Package 50 per Pack
Stud Size #8
Temperature Rating 302 Degrees Fahrenheit (150 Degrees Celsius);302 Deg F
Type Ring Terminal;Standard
UNSPSC 39121409
UPC 07498380230
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 2000 V
Wire Size 10 AWG

Resources

CatalogNumber P10-8R-L
Full Image

Package Information

SellPkgQty 50
