Pan-Term P14-6F-C Loose Piece Forks

Page Loading...
PANDUIT CORPORATION

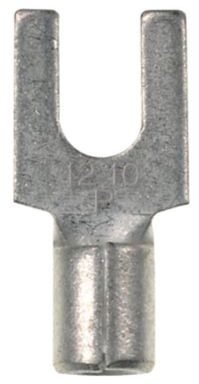

Pan-Term P14-6F-C Loose Piece Forks

Mouse over image to zoom, click to enlarge

Description:
Pan-Term P14-6F-C Loose Piece Forks

UPC:  07498380508

Part Number: P14-6F-C

UNSPSC: 39121409

Status:  UNKNOWN

Your Price:  $0.31 / EA


Quantity  EA
Note: this product is only sold in multiples of 100 items

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo P14-6F-C
Additional Information RoHS Compliant; Size 0.63 Inch Length x 0.28 Inch Width; Voltage Rating 2000 Volt; Barrel Type Brazed Seam; Base Material Tin Plated Copper; Color Metallic; Wire Strip Length 9/32 Inch; Packaging Type Bottle
Approval UL (Canada and US), UL 486A/486B, CSA C22.2
Base Price 0.0000
Brand Name Pan-Term [R]
Catalog Number P14-6F-C
Color Metallic
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Standard
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Enclosure Fork shape
Families 596
Family Description Small Terminals & Connectors
Finish Tinned
Image Location * Image
Industry ELX
Insulation None
Insulation Type Non-Insulated
InvoiceDescription Pan-Term P14-6F-C Loose Piece Forks;#14 N/I FK TERM
Item Number 80508
Long Description NON-INSULATED FORK TERMINAL, STANDARD TYPE; 18 AWG MIN. CONDUCTOR SIZE; 14 AWG MAX. CONDUCTOR SIZE; UL (CANADA AND US), UL 486A/486B, CSA C22.2 APPROVAL; 302 DEG F TEMPERATURE RATING; 100 STANDARD PACKAGE; #6 STUD SIZE; NON-INSULATED INSULATION TYPE
MSDS Form Number *
Material Copper
Maximum Conductor Size 14 AWG
Minimum Conductor Size 18 AWG
Model P-F
Mounting 9/32 In.
Noun *
Product Description Pan-Term P14-6F-C Loose Piece Forks
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Size #6
Standard CSA Certified LR31212;UL Listed 587H E52164
Standard Package 100
Stud Size #6
Temperature Rating 302 Degrees Fahrenheit (150 Degrees Celsius);302 Deg F
Type Fork Terminal;Standard
UNSPSC 39121409
UPC 07498380508
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 2000 V
Wire Size 14 AWG

Resources

CatalogNumber P14-6F-C
Full Image

Package Information

SellPkgQty 100
