PAND PN10-56R-D

Pan-Term PN10-56R-D Ring Terminal

Page Loading...
PANDUIT CORPORATION

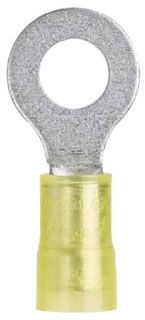

Pan-Term PN10-56R-D Ring Terminal

Mouse over image to zoom, click to enlarge

Description:
Pan-Term PN10-56R-D Ring Terminal

UPC:  07498380037

Part Number: PN10-56R-D

UNSPSC: 39121409

Status:  UNKNOWN

Retail Price:  $677.89 / EA
Your Price:  $0.40 / EA


Quantity  EA
Note: this product is only sold in multiples of 500 items

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo PN10-56R-D
Additional Information RoHS Compliant; Barrel Style Insulation Grip Sleeve; Overall Dimension 1.21 Inch L x 0.52 Inch W; Base Material Electrolytic Tin Plated Copper; Maximum Voltage Rating 600 V
Approval UL 486A/486B, CSA C22.2
Base Price 0.0000
Brand Name Panduit;Pan-Term[R]
Catalog Number PN10-56R-D
Color Yellow
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Standard
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Enclosure Ring shape
Families 596
Family Description Small Terminals & Connectors
Finish Tin Plated
Image Location * Image
Industry ELX
Insulation Nylon
Insulation Type Nylon Insulated
InvoiceDescription Pan-Term PN10-56R-D Ring Terminal;#10 NYL RG TERM
Item Number 80037
Long Description INSULATED RING TERMINAL, STANDARD TYPE; YELLOW COLOR; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL 486A/486B, CSA C22.2 APPROVAL; 221 DEG F TEMPERATURE RATING; 500 PER BOX STANDARD PACKAGE; 5/16 INCH STUD SIZE
MSDS Form Number *
Material Copper
Maximum Conductor Size 10 AWG
Minimum Conductor Size 12 AWG
Mounting 9/32
Noun *
Product Description Pan-Term PN10-56R-D Ring Terminal
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Size "5/16"""
Standard UL Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-113)
Standard Package 500 per Box
Stud Size 5/16 Inch
Sub Brand Pan-Term
Temperature Rating 221 F;221 Deg F
Type Ring Terminal;Standard
UNSPSC 39121409
UPC 07498380037
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Wire Size #10 AWG

Resources

CatalogNumber PN10-56R-D
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 500
