PAND PN10-8RX-L

Pan-Term PN10-8RX-L Ring Terminal

Page Loading...
PANDUIT CORPORATION

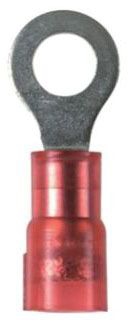

Pan-Term PNF18-8R-C Ring Terminal

Mouse over image to zoom, click to enlarge

Description:
Pan-Term PN10-8RX-L Ring Terminal

UPC:  07498351318

Part Number: PNF18-8R-C

UNSPSC: 39121409

Status:  UNKNOWN

Retail Price:  $142.12 / EA
Your Price:  $0.90 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo PN10-8RX-L
Additional Information Overall Dimension 1.13 Inch L x 0.37 Inch W; Material Electrolytic Tin Plated Copper; Barrel Type Insulation Grip Sleeve; Voltage Rating 600 V; ROHS Compliant
Approval UL 486A/486B, CSA C22.2
Base Price 0.0000
Brand Name Pan-Term[R]
Catalog Number PN10-8RX-L
Color Yellow
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Expanded Entry
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Enclosure Ring shape
Families 596
Family Description Small Terminals & Connectors
Finish Tin-Plated
Image Location * Image
Industry ELX
Insulation Nylon
Insulation Type Nylon Insulated
InvoiceDescription Pan-Term PN10-8RX-L Ring Terminal;#10 NYL RG TERM
Item Number 80070
Long Description INSULATED EXPANDED RING TERMINAL, EXPANDED ENTRY TYPE; YELLOW COLOR; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL 486A/486B, CSA C22.2 APPROVAL; 221 DEG F TEMPERATURE RATING; 50 STANDARD PACKAGE; #8 STUD SIZE
MSDS Form Number *
Material Copper
Maximum Conductor Size 10 AWG
Minimum Conductor Size 12 AWG
Model PN-RX
Mounting 9/32 In.
Noun *
Product Description Pan-Term PN10-8RX-L Ring Terminal
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Size #8
Standard UL Listed 587H E52164, CSA Certified LR31212
Standard Package 50
Stud Size #8
Temperature Rating 221 Degrees Fahrenheit (105 Degrees Celsius);221 Deg F
Type Ring Terminal;Expanded Entry
UNSPSC 39121409
UPC 07498380070
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Wire Size #12 AWG

Resources

CatalogNumber PN10-8RX-L
Full Image

Package Information

SellPkgQty 50
