PANDUIT CORPORATION

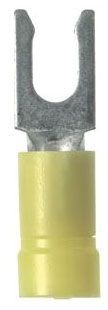

Pan-Term PV10-10LF-L Fork Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50

Mouse over image to zoom, click to enlarge

Description:
Pan-Term PV10-10LF-L Fork Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50

UPC:  07498380816

Part Number: PV10-10LF-L

UNSPSC: 39121409

Status:  UNKNOWN

Retail Price:  $113.89 / EA
Your Price:  $0.72 / EA


Quantity  EA
Note: this product is only sold in multiples of 50 items

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo PV10-10LF-L
Additional Information RoHS Compliant; Overall Dimension 1.04 Inch Length x 0.34 Inch Width; Voltage Rating 600 Volt; Barrel Type Brazed Seam; Base Material Electrolytic Tin Plated Copper; Flammability Rating UL 94V-0; Wire Strip Length 0.31 Inch; Maximum Wire Insulation Diamet
Approval UL (Canada and US), CSA
Base Price 0.0000
Brand Name Pan-Term[R]
Catalog Number PV10-10LF-L
Color Yellow
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Funnel
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Enclosure Fork shape
Families 596
Family Description Small Terminals & Connectors
Finish Tinned
Image Location * Image
Industry ELX
Insulation Vinyl
Insulation Type Vinyl Insulated
InvoiceDescription Pan-Term PV10-10LF-L Fork Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50;#10 VNL FK TERM
Item Number 80816
Long Description INSULATED FUNNEL-ENTRY LOCKING FORK TERMINAL, STANDARD, BEVELED, FUNNEL ENTRY, LOCKING TYPE; YELLOW COLOR; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL (CANADA AND US), CSA APPROVAL; 221 DEG F TEMPERATURE RATING; 50 STANDARD PACKAGE
MSDS Form Number *
Material Copper
Maximum Conductor Size 10 AWG
Minimum Conductor Size 12 AWG
Model PV-LF
Mounting 5/16 In.
Noun *
Product Description Pan-Term PV10-10LF-L Fork Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud, PK50
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Size #10
Standard CSA Certified LR31212;UL Listed 587H E52164
Standard Package 50
Stud Size #10
Temperature Rating 221 Degrees Fahrenheit (105 Degrees Celsius);221 Deg F
Type Locking Fork Terminal;Standard, Beveled, Funnel Entry, Locking
UNSPSC 39121409
UPC 07498380816
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600
Wire Size 10 AWG
