PAND PV10-14R-D

"Pan-Term PV10-14R-D Ring Terminal, Yellow, Vinyl, 10-12 AWG, 1/4"" Stud, PK500"

Page Loading...
PANDUIT CORPORATION

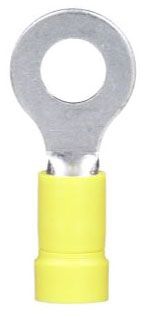

"Pan-Term PV10-14R-D Ring Terminal, Yellow, Vinyl, 10-12 AWG, 1/4"" Stud, PK500"

Mouse over image to zoom, click to enlarge

Description:
"Pan-Term PV10-14R-D Ring Terminal, Yellow, Vinyl, 10-12 AWG, 1/4"" Stud, PK500"

UPC:  07498380135

Part Number: PV10-14R-D

UNSPSC: 39121409

Status:  UNKNOWN

Retail Price:  $454.94 / EA
Your Price:  $0.27 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo PV10-14R-D
Additional Information RoHS Compliant; Barrel Style Brazed Seam with Insulation Support; Voltage Rating 600 Volt; Overall Dimension 1.23 Inch Length x 0.52 Inch Width; Wire Strip Length 0.31 Inch; Maximum Wire Insulation Diameter 0.23 Inch; Material Tin Plated Copper
Approval UL, CSA
Base Price 0.0000
Brand Name Pan-Term[R]
Catalog Number PV10-14R-D
Color Yellow
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Funnel Entry
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Enclosure Ring shape
Families 596
Family Description Small Terminals & Connectors
Finish Tinned
Image Location * Image
Industry ELX
Insulation Vinyl
Insulation Type Vinyl Insulated
InvoiceDescription "Pan-Term PV10-14R-D Ring Terminal, Yellow, Vinyl, 10-12 AWG, 1/4"" Stud, PK500";#10 VNL RG TERM
Item Number 80135
Long Description INSULATED RING TERMINAL, FUNNEL ENTRY TYPE; YELLOW COLOR; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL, CSA APPROVAL; 221 DEG F TEMPERATURE RATING; 500 STANDARD PACKAGE; 1/4 INCH STUD SIZE; VINYL INSULATED INSULATION TYPE; PAN-TERM[R] BRAND
MSDS Form Number *
Material Copper
Maximum Conductor Size 10 AWG
Minimum Conductor Size 12 AWG
Model PV-R
Mounting 5/16 In.
Noun *
Product Description "Pan-Term PV10-14R-D Ring Terminal, Yellow, Vinyl, 10-12 AWG, 1/4"" Stud, PK500"
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Size "1/4"""
Standard cULus Listed 587H E52164, CSA Certified LR31212
Standard Package 500
Stud Size 1/4 Inch
Temperature Rating 221 Degrees Fahrenheit (105 Degrees Celsius);221 Deg F
Type Ring Terminal;Funnel Entry
UNSPSC 39121409
UPC 07498380135
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600
Wire Size 10 AWG

Resources

CatalogNumber PV10-14R-D
Full Image

Package Information

SellPkgQty 1
