PANDUIT CORPORATION

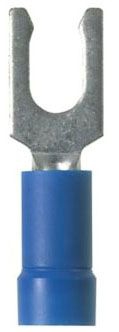

Pan-Term PV14-6LFW-M Loose Piece Terminal

Mouse over image to zoom, click to enlarge

Description:
Pan-Term PV14-6LFW-M Loose Piece Terminal

UPC:  07498380949

Part Number: PV14-6LFW-M

UNSPSC: 39121409

Status:  UNKNOWN

Retail Price:  $321.81 / EA
Your Price:  $0.19 / EA


Quantity  EA

Specifications

Manufacturer Name PANDUIT CORPORATION
MfgPartNo PV14-6LFW-M
Additional Information DIMENSION 0.9 INCH LENGTH X 0.29 INCH WIDTH X 0.03 INCH THICK; BRAZED SEAM BARREL; MATERIAL ELECTROLYTIC TIN PLATED COPPER
Approval UL, CSA
Base Price 0.0000
Brand Name PAN-TERM.
Catalog Number PV14-6LFW-M
Color Blue;BLUE
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
Connection Funnel Entry
CountryOfOrigin MEX
DDCATEGORY 596
Directory CIS
Enclosure Fork shape
Families 596
Family Description Small Terminals & Connectors
Finish Tinned
Image Location * Image
Industry ELX
Insulation Vinyl
Insulation Type VINYL INSULATED
InvoiceDescription Pan-Term PV14-6LFW-M Loose Piece Terminal;#14 VNL FK TERM
Item Number 80949
Long Description INSULATED FUNNEL-ENTRY WIDE LOCKING FORK TERMINAL, FUNNEL ENTRY, LOCKING TYPE; BLUE COLOR; 16 AWG MIN. CONDUCTOR SIZE; 14 AWG MAX. CONDUCTOR SIZE; UL, CSA APPROVAL; 221 DEG F TEMPERATURE RATING; 1000 STANDARD PACKAGE; #6 STUD SIZE
MSDS Form Number *
Material Copper
Maximum Conductor Size 14 AWG
Minimum Conductor Size 16 AWG
Model PV
Mounting 5/16 In.
Noun *
Product Description Pan-Term PV14-6LFW-M Loose Piece Terminal
Product Keywords WEBREADY
Product Name Wire connectors
ProductLine PAND
Size #6
Standard CSA Certified LR31212;UL Listed 587H E52164
Standard Package 1000
Stud Size #6
Temperature Rating 221 Degrees Fahrenheit (105 Degrees Celsius);221 DEG F
Type Ring Terminal;FUNNEL ENTRY, LOCKING
UNSPSC 39121409
UPC 07498380949
Vendor Name PANDUIT CORPORATION
Vendor Number 074983
Vendor Short Name PAND
Voltage Rating 600 V
Wire Size 14 AWG
