RACO INC

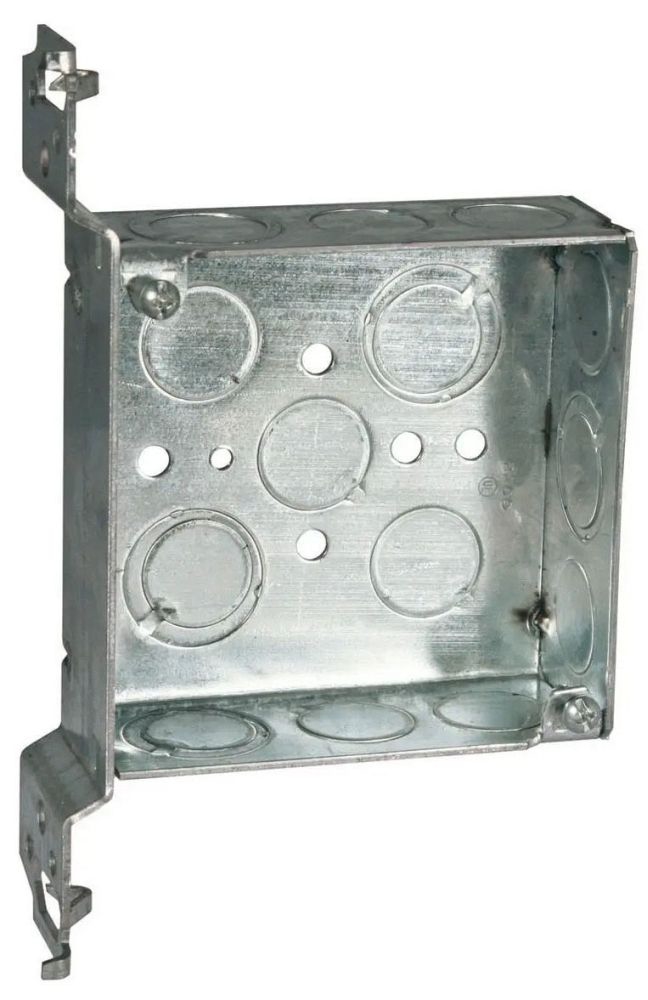

4SQ 1-1/2D METAL STUD BOX

Mouse over image to zoom, click to enlarge

Description:
4SQ 1-1/2D METAL STUD BOX

UPC:  05016990196

Part Number: 196

UNSPSC: 39121303

Status:  UNKNOWN

Your Price:  $8.62 / EA


Quantity  EA

Specifications

Manufacturer Name RACO INC
MfgPartNo 196
Additional Information Voltage Rating 600 Volt; Application Wall/Ceiling for Lighting Fixture, Switch/Receptacle; Applicable Standard ANSI, NEMA OS1
Application Electrical
Approval UL 514A, CSA C22.2
Base Price 0.0000
Cable Entry Knockouts for conduit
Capacity 21 Cubic Inch
Catalog Number 196
Certified Listed UL Listed
Color Silver
Commerce Sector Construction Materials
Commodity Code 27100
Commodity Description Steel Outlet Boxes
Construction Welded
CountryOfOrigin US
Cubic Capacity 21 in3
DDCATEGORY 139
Depth 1-1/2 Inch
Depth Maximum 1.5 in
Depth Minimum 1.5 in
Description Long 1-1/2 in. Deep with Nine 1/2 in. KO's and Five TKO's;4 in. Square Box;Flush Bracket;FS;Welded
Description Marketing Copy Designed to enclose electrical wiring;receptacles or lighting fixtures. Constructed from 1/16 in. pre-galvanized steel. 8-32 cover mounting screws assembled. Suitable for use without a bonding jumper in circuits up to 600V.;switches
Description Short 1-1/2 in. Deep with Nine 1/2 in. KO's and Five TKO's;4 in. Square Box;Flush Bracket;FS;Welded
Directory CIS
Drawn Or Welded Welded
EU RoHS Indicator Yes
FEATURES Bullets flush;Welded construction;Nine 1/2 in. knockouts and Five TKO knockouts;UL Listed;21.0 cu. in. capacity;Acceptable in 2-hour fire rated walls;TKO knockout design provides installation flexibilty;FS style bracket
FV BuyAmericanCompliant Yes
FV Certified Listed UL Listed
FV Drawn Or Welded Welded
FV Wiring System Conduit
Families 139
Family Description Steel Outlet Boxes
Fire Resistance Yes
Height 4 Inch
Image Location * Image
Industry ELX
InvoiceDescription 4SQ BOX 1-1/2 DEEP FS-BRKT 1/2-3/4 TKO;4SQ 1-1/2D METAL STUD BOX
Item Number 90196
Knockout Location (5) Bottom, (9) Sides
Knockout Size (3) 1/2 Inch Conduit Bottom, (2) (1/2 Inch-3/4 Inch) Conduit Threaded Knockout Bottom, (6) 1/2 Inch Conduit Sides, (3) (1/2 Inch-3/4 Inch) Conduit Threaded Knockout Sides
Knockouts True
Long Description SQUARE BOX, WELDED TYPE; PRE-GALVANIZED SHEET STEEL MATERIAL; 4 INCH; 4 INCH; 1-1/2 INCH; UL 514A, CSA C22.2 APPROVAL; FS BRACKET FLUSH MOUNTING; 25 PER CARTON STANDARD PACKAGE; 21 CUBIC INCH CAPACITY
MSDS Form Number *
Material Steel;Pre-Galvanized Sheet Steel
Mounting FM bracket;FS Bracket Flush
Noun *
Number Of Knockouts 14
Packaging Type No Packaging
Pallet Quantity 1650
Product Description 4SQ 1-1/2D METAL STUD BOX
Product Keywords WEBREADY
Product Name 1-1/2 in. Deep with Nine 1/2 in. KO's and Five TKO's;4 in. Square Box;Flush Bracket;FS;Welded
Product Type Steel Box
ProductLine RACO
Raised Ground No
Size 4 in
Special Features "Patented TKO 1/2"" & 3/4"" eccentric knockouts (Per U.L. 514-A;suitable for use without a bonding jumper in circuits above or below 250 volts); combination cover screw heads provide for faster mudring/cover installation; FM bracket mounts flat on side of stud and provides a rigid/secure box installation"
Standard UL Listed
Standard Package 25 per Carton
Type Box;Welded
UNSPSC 39121303
UPC 05016990196
Vendor Name RACO INC
Vendor Number 050169
Vendor Short Name RACO
Width 4.375 in;4 Inch
Wiring System Conduit

Resources

CatalogNumber 196
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
