RACO 235

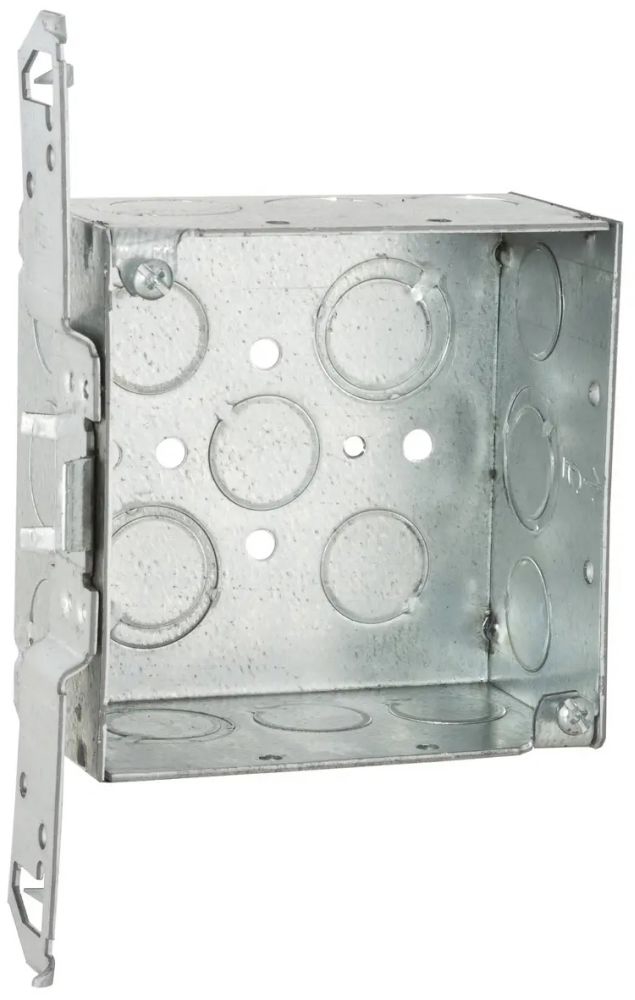

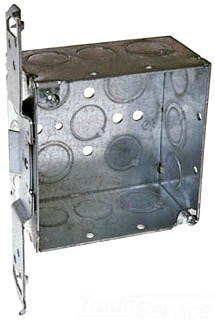

4SQ 2-1/8D BOX W/FLAT BRKT

Page Loading...
RACO INC
4SQ 2-1/8D BOX W/FLAT BRKT

Mouse over image to zoom, click to enlarge

Description:
4SQ 2-1/8D BOX W/FLAT BRKT

UPC:  05016990235

Part Number: 235

UNSPSC: 39121303

Status:  UNKNOWN

Your Price:  $13.49 / EA


Quantity  EA

Specifications

Manufacturer Name RACO INC
MfgPartNo 235
Additional Information Voltage Rating 600 Volt; Application Industrial Commercial and Residential, Electrical Wiring, Switch, Receptacle/Lighting Fixture; Applicable Standard ANSI, NEMA OS1
Application Electrical
Approval UL 514A, CSA C22.2
Base Price 0.0000
Cable Entry Knockouts for conduit
Capacity 30.3 Cubic Inch
Catalog Number 235
Certified Listed UL Listed
Color Silver
Commerce Sector Construction Materials
Commodity Code 27100
Commodity Description Steel Outlet Boxes
Construction Welded
CountryOfOrigin CN
Cubic Capacity 30.3 in3
DDCATEGORY 139
Depth 2-1/8 Inch
Depth Maximum 2.125 in
Depth Minimum 2.125 in
Description Long 2-1/8 in. Deep;4 in. Square Box;Eight 1/2 in. KO's and Five TKO's;Flush;TS Bracket;Welded
Description Marketing Copy Designed to enclose electrical wiring;receptacles or lighting fixtures. Constructed from 1/16 in. pre-galvanized steel. 8-32 cover mounting screws assembled. Suitable for use without a bonding jumper in circuits up to 600V.;switches
Description Short 2-1/8 in. Deep;4 in. Square Box;Eight 1/2 in. KO's and Five TKO's;Flush;TS Bracket;Welded
Directory CIS
Drawn Or Welded Welded
EU RoHS Indicator Contact Manufacturer
FEATURES Bullets flush;Combination screw heads allow quick installation;Welded construction;Nine 1/2 in. knockouts and Five TKO knockouts;UL Listed;30.3 cu. in. capacity;Acceptable in 2-hour fire rated walls;TS style bracket
FV BuyAmericanCompliant Contact Manufacturer
FV Certified Listed UL Listed
FV Drawn Or Welded Welded
FV Wiring System Conduit
Families 139
Family Description Steel Outlet Boxes
Fire Resistance Yes
Height 4 Inch
Image Location * Image
Industry ELX
InvoiceDescription 4SQ BOX 2-1/8 DEEP TS-BRKT 1/2-3/4 TKO;4SQ 2-1/8D BOX W/FLAT BRKT
Item Number 90235
Knockout Location (5) Bottom, (9) Sides
Knockout Size (3) 1/2 Inch Conduit Bottom, (2) (1/2 Inch-3/4 Inch) Conduit Threaded Knockout Bottom, (6) 1/2 Inch Conduit Sides, (3) (1/2 Inch-3/4 Inch) Conduit Threaded Knockout Sides
Knockouts True
Long Description SQUARE BOX, WELDED TYPE; PRE-GALVANIZED SHEET STEEL MATERIAL; 4 INCH; 4 INCH; 2-1/8 INCH; UL 514A, CSA C22.2 APPROVAL; TS BRACKET FLUSH MOUNTING; 25 PER CARTON STANDARD PACKAGE; 30.3 CUBIC INCH CAPACITY
MSDS Form Number *
Material Steel;Pre-Galvanized Sheet Steel
Mounting TS bracket;TS Bracket Flush
Noun *
Number Of Knockouts 14
Packaging Type No Packaging
Pallet Quantity 1100
Product Description 4SQ 2-1/8D BOX W/FLAT BRKT
Product Keywords WEBREADY
Product Name 2-1/8 in. Deep;4 in. Square Box;Eight 1/2 in. KO's and Five TKO's;Flush;TS Bracket;Welded
Product Type Steel Box
ProductLine RACO
Raised Ground No
Size 4 in
Special Features "Patented TKO 1/2"" & 3/4"" eccentric knockouts (Per U.L. 514-A;suitable for use without a bonding jumper in circuits above or below 250 volts); combination cover screw heads provide for faster mudring/cover installation; TS bracket features gauging tabs and recessed nailing spurs"
Standard UL Listed
Standard Package 25 per Carton
Type Box;Welded
UNSPSC 39121303
UPC 05016990235
Vendor Name RACO INC
Vendor Number 050169
Vendor Short Name RACO
Width 4.436 in;4 Inch
Wiring System Conduit
