| Manufacturer Name | RACO INC |
| MfgPartNo | 2538 |
| Additional Information | Inside Opening Size 1-3/16 Inch; Approval UL |
| Application | For use with hangers, bridle rings, and drop rods to support conduit from I-beams;Hanger, Bridge Ring, Drop Rod to Support Conduit |
| Base Price | 0.0000 |
| Brand Name | RACO |
| Catalog Number | 2538 |
| Certified Listed | cULus Listed |
| Color | Silver |
| Commerce Sector | Construction Materials |
| Commodity Code | 65400 |
| Commodity Description | Miscellaneous Fastening Hardware |
| Construction | Two piece, base and bolt |
| CountryOfOrigin | CN |
| DDCATEGORY | 604 |

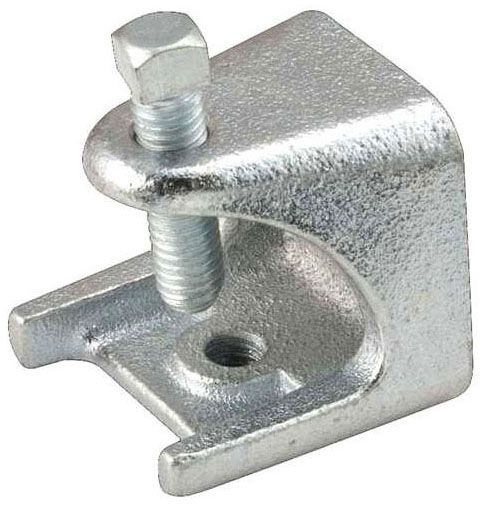

| Description Long | Beam Clamp, Malleable Iron |
| Description Short | Beam Clamp, Malleable Iron |
| Directory | CIS |
| FEATURES Bullets | Rugged steel/malleable iron construction will last the lifetime of the installation;Zinc electroplated for corrosion resistance;Additional sizes available |
| FV Fitting Type | Clamps |
| Families | 604 |
| Family Description | Miscellaneous Fastening Hardware |
| Finish | Zinc Plated;Zinc Electroplated |
| Fitting Type | Clamps |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | BEAM CLAMP 2 IN (3/8 IN-16) MALL IRON;2IN MI BEAM CLAMP |
| Item Number | 02538 |
| Load | 750 lbs |
| Load Capacity | 100 Pound |
| Long Description | BEAM CLAMP, MALLEABLE IRON MATERIAL; ZINC ELECTROPLATED FINISH; 2 INCH MAX. JAW CAPACITY; HANGER, BRIDGE RING, DROP ROD TO SUPPORT CONDUIT APPLICATION; 100 POUND LOAD CAPACITY; 3/8 INCH-16 TPI SCREW SIZE; YES SUPPLIED WITH SCREW |
| MSDS Form Number | * |
| Material | Malleable Iron |
| Max Load Lbs | 100 lb. |
| Maximum Jaw Capacity | 2 Inch |
| Minimum Pack Quantity | 25 |
| Noun | * |
| Pallet Quantity | 6000 |
| Product Description | 2IN MI BEAM CLAMP |
| Product Keywords | WEBREADY |
| Product Name | Beam Clamp, Malleable Iron |
| ProductLine | RACO |
| Screw Size | 3/8 Inch-16 TPI |
| Size | 1.84 in x 1.9 in x 1.84 in |
| Special Features | Zinc electro plated |
| Standard | cULus Listed |
| Supplied With Screw | Yes |
| Type | Conduit beam clamp |
| UNSPSC | 39121701 |
| UPC | 05016902538 |
| Vendor Name | RACO INC |
| Vendor Number | 050169 |
| Vendor Short Name | RACO |
