| Manufacturer Name | RACO INC |
| MfgPartNo | 258 |
| Additional Information | Voltage Rating 600 Volt; Application Industrial, Commercial and Residential; Applicable Standard ANSI, NEMA OS1 |
| Application | Electrical |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Cable Entry | Knockouts for conduit |
| Capacity | 42 Cubic Inch |
| Catalog Number | 258 |
| Certified Listed | UL Listed |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 27100 |
| Commodity Description | Steel Outlet Boxes |
| Construction | Welded |
| CountryOfOrigin | US |
| Cubic Capacity | 42 in3 |
| DDCATEGORY | 139 |
| Depth | 2-1/8 Inch |
| Depth Maximum | 2.125 in |
| Depth Minimum | 2.125 in |
| Description Long | 2-1/8 in. Deep with One 1/2 in.;4-11/16 in. Square Box;and Three TKO's;Eight 1 in.;Raised;Welded |
| Description Short | 2-1/8 in. Deep with One 1/2 in.;4-11/16 in. Square Box;and Three TKO's;Eight 1 in.;Raised;Welded |
| Directory | CIS |
| Drawn Or Welded | Welded |
| EU RoHS Indicator | Contact Manufacturer |
| FEATURES Bullets | armored;Combination screw heads provide for faster installation;TKO knockouts allow for design and installation flexibility;Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices;With proper fitting can be used for conduit;flex cable;42.0 cu. in. capacity;UL listed;metal clad;NMSC |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | UL Listed |
| FV Drawn Or Welded | Welded |
| FV Wiring System | Conduit |
| Families | 139 |
| Family Description | Steel Outlet Boxes |
| Height | 4-11/16 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4-11/16 BOX 2-1/8 DEEP 1/2-3/4-1 KO;4-11/16SQ 2-1/8D BOX |
| Item Number | 00258 |
| Knockout Location | (4) Bottom, (8) Sides |
| Knockout Size | (1) 1/2 Inch Conduit Bottom, (3) (1/2 Inch-3/4 Inch) Conduit Threaded Knockout Bottom, (8) 1 Inch Conduit Sides |
| Knockouts | True |
| Long Description | SQUARE BOX, WELDED, RAISED GROUND TYPE; PRE-GALVANIZED SHEET STEEL MATERIAL; 4-11/16 INCH; 4-11/16 INCH; 2-1/8 INCH; UL 514A, CSA C22.2 APPROVAL; 25 PER CARTON STANDARD PACKAGE; 42 CUBIC INCH CAPACITY |
| MSDS Form Number | * |
| Material | Steel;Pre-Galvanized Sheet Steel |
| Mounting | No bracket |
| Noun | * |
| Number Of Gang S | 2-Gang |
| Number Of Knockouts | 12 |
| Packaging Type | No Packaging |
| Pallet Quantity | 1500 |

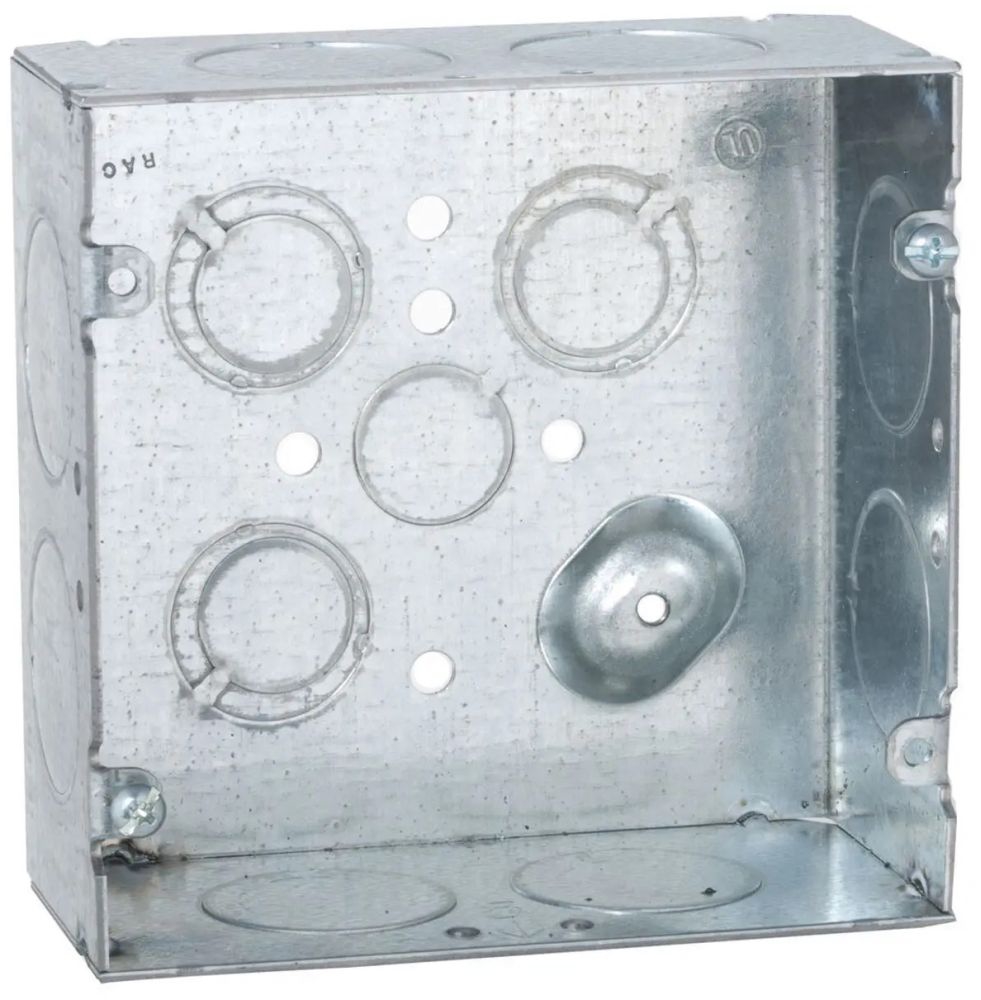

| Product Description | 4-11/16SQ 2-1/8D BOX |
| Product Keywords | WEBREADY |
| Product Name | 2-1/8 in. Deep with One 1/2 in.;4-11/16 in. Square Box;and Three TKO's;Eight 1 in.;Raised Ground;Welded |
| Product Type | Steel Box |
| ProductLine | RACO |
| Raised Ground | Yes |
| Size | 4-11/16 in |
| Special Features | Combination cover screw heads provide for faster mudring/cover installation; raised ground provision in back of box |
| Standard | UL Listed |
| Standard Package | 25 per Carton |
| Type | Box;Welded, Raised Ground |
| UNSPSC | 39121303 |
| UPC | 05016900258 |
| Vendor Name | RACO INC |
| Vendor Number | 050169 |
| Vendor Short Name | RACO |
| Width | 4.688 in;4-11/16 Inch |
| Wiring System | Conduit |
