| Manufacturer Name | RACO INC |
| MfgPartNo | 500 |
| Additional Information | Applicable Standard ANSI, NEMA OS1; Application House Wiring Device |
| Application | Electrical |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Cable Entry | Knockouts for conduit |
| Capacity | 12.5 Cubic Inch |
| Catalog Number | 500 |
| Certified Listed | UL Listed |
| Color | Silver |
| Commerce Sector | Construction Materials |
| Commodity Code | 27100 |
| Commodity Description | Steel Outlet Boxes |
| Construction | Gangable |
| CountryOfOrigin | MX |
| Cubic Capacity | 12.5 in3 |
| DDCATEGORY | 139 |
| Depth | 2-1/2 Inch |
| Depth Maximum | 2.5 in |
| Depth Minimum | 2.5 in |

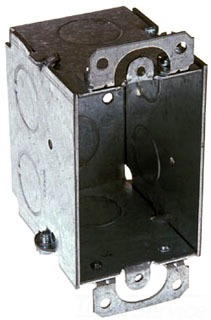

| Description Long | 2-1/2 in. Deep;3 in. x 2 in. Switch Box;Eight 1/2 in. KO's;Gangable;Plaster Ears |
| Description Short | 2-1/2 in. Deep;3 in. x 2 in. Switch Box;Eight 1/2 in. KO's;Gangable;Plaster Ears |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| FEATURES Bullets | "2-1/2 in. deep;Gangable switch boxes offer the option of constructing a box to hold two or more devices;With proper fitting can be used for consuit;3 in. x 2 in.;armored;flex cable;Supplied with eight 1/2 in. knockouts;Plaster ears allow a box to be used in ""old work"" applications;12.5 cu. in. capacity;Acceptable for use in 2-hour fire rated walls;metal clad;NMSC" |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | UL Listed |
| FV Gangable | Yes |
| FV Plaster Ears | Yes |
| FV Wiring System | Conduit |
| Families | 139 |
| Family Description | Steel Outlet Boxes |
| Fire Resistance | Yes |
| Gangable | Yes |
| Height | 3 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2-1/2 IN DEEP SW BOX PLASTER EARS 1/2 KO;2-1/2D SW BOX W/EARS&KO |
| Item Number | 90500 |
| Knockout Location | (2) Bottom, (2) Ends, (4) Sides |
| Knockout Size | 1/2 Inch |
| Knockouts | True |
| Long Description | SWITCH BOX, GANGABLE TYPE; PRE-GALVANIZED SHEET STEEL MATERIAL; 2 INCH; 3 INCH; 2-1/2 INCH; UL 514A, CSA C22.2 APPROVAL; PLASTER EAR MOUNTING; 50 STANDARD PACKAGE; 12.5 CUBIC INCH CAPACITY; 1/2 INCH KNOCKOUT SIZE; 8 KNOCKOUT(S) |
| MSDS Form Number | * |
| Material | Pre-galvanized steel;Pre-Galvanized Sheet Steel |
| Mounting | Plaster ears;Plaster Ear |
| Noun | * |
| Number Of Knockouts | 8 |
| Number Of Outlet | 1 |
| Packaging Type | No Packaging |
| Pallet Quantity | 3250 |
| Plaster Ears | Yes |
| Product Description | 2-1/2D SW BOX W/EARS&KO |
| Product Keywords | WEBREADY |
| Product Name | 2-1/2 in. Deep;3 in. x 2 in. Switch Box;Eight 1/2 in. KO's;Gangable;Plaster Ears |
| Product Type | Steel Boxes and Covers |
| ProductLine | RACO |
| Size | 2-1/2 IN |
| Special Features | "Gangable switch box offers the option of constructing a box to hold two or more devices; adjustable plaster ears allow box to be used in ""old work"" applications" |
| Standard | UL Listed |
| Standard Package | 50 |
| Type | Switch Box;Box;Gangable |
| UNSPSC | 39121303 |
| UPC | 05016990500 |
| Vendor Name | RACO INC |
| Vendor Number | 050169 |
| Vendor Short Name | RACO |
| Width | 2 in;2 Inch |
| Wiring System | Conduit |
