| Manufacturer Name | RACO INC |
| MfgPartNo | 5026-0 |
| Additional Information | Enclosure Rating NEMA 3R; Includes Installation Hardware, Gasket and Multi-Lingual Instruction; Used On Outdoor Receptacle; Applicable Standard NEC |
| Application | Flip |
| Approval | UL, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Rayntite[R] |
| Catalog Number | 5026-0 |
| Certified Listed | cULus Listed |
| Collection Name | RAYNTITE |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 27700 |
| Commodity Description | Bar Hangers & Outlet Box Accy |
| Construction | Metallic |
| CountryOfOrigin | IN |
| DDCATEGORY | 1139 |

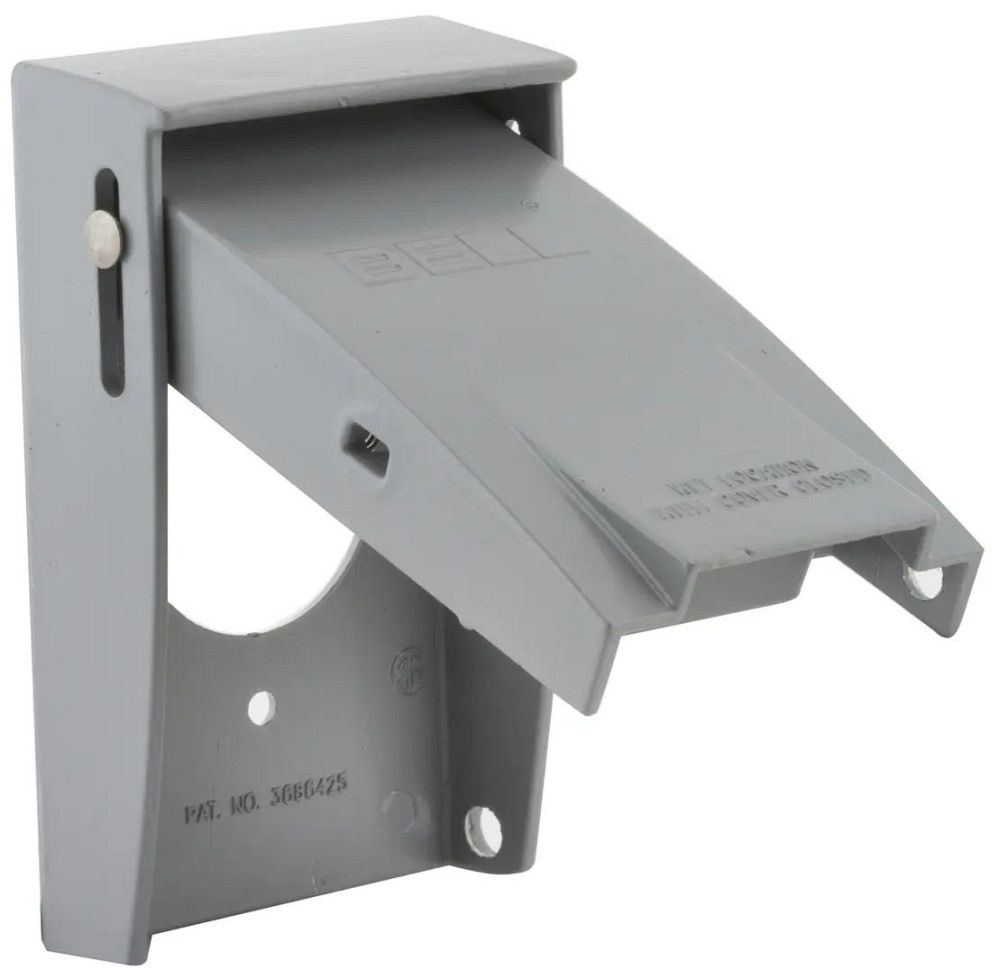

| Description Long | 1-Gang RAYNTITE Weatherproof Cover;1.593 in. Dia.;Gray;Vertical |
| Description Short | 1-Gang RAYNTITE Weatherproof Cover;1.593 in. Dia.;Gray;Vertical |
| Device Opening | (1) 1.593 Inch Diameter Single Receptacle |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| FEATURES Bullets | and multilingual instructions are included;Single 1.593 in. diameter;Vertical mount;gasket;Rugged die cast aluminum construction;State-of-the-art powder coat finish provides maximum weatherability and scratch resistance;Self closing lids assure weatherproof protection when the receptacle is not in use;Vertical mount covers padlockable;May be mounted to box or device;Installation hardware |
| FV Box Type | 1-Gang |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | cULus Listed |
| FV Collection Name | RAYNTITE |
| FV Construction | Metallic |
| Families | 1139 |
| Family Description | Bar Hangers & Outlet Box Accy |
| Finish | Powder coat;Powder Coated |
| Height | 4.5 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1G RAYNTITE VERT WP COVER 1.593 DIA GRAY;1G WP SGL RCPT CVR |
| Item Number | 50260 |
| Length | 2.75 in |
| Lid Type | Single Padlockable Lid with Gasket |
| Long Description | WEATHERPROOF DEVICE BOX COVER, SELF-CLOSING, FLIP/SNAP TYPE; DIE-CAST ALUMINUM MATERIAL; 2-3/4 INCH WIDTH X 1-1/8 INCH DEPTH X 4-1/2 INCH HEIGHT SIZE; POWDER COATED FINISH; GRAY COLOR; 1 GANG(S); UL, CSA C22.2 APPROVAL; BOX/DEVICE MOUNTING |
| MSDS Form Number | * |
| Material | Die-Cast Aluminum |
| Material Quality | Aluminum |
| Mounting | Box/Device |
| Mounting Method | Vertical |
| Mounting Position | Vertical |
| NEC | Compliant |
| Noun | * |
| Number Of Gang S | 1-Gang |
| Number Of Gangs | 1 |
| Packaging Type | Shrink |
| Pallet Quantity | 2160 |
| Product Description | 1G WP SGL RCPT CVR |
| Product Keywords | WEBREADY |
| Product Name | 1-Gang;1.593 in. Dia.;Gray;RAYNTITE Series;Vertical;Weatherproof Cover |
| Product Type | Weatherproof Covers |
| ProductLine | RACO |
| Series | RAYNTITE Series |
| Size | 2-3/4 Inch Width x 1-1/8 Inch Depth x 4-1/2 Inch Height |
| Special Features | 1.593 IN diameter receptacle type;and multi-lingual instructions included;gasket;padlockable;self-closing lids; installation hardware;weatherproof protection |
| Standard | cULus Listed |
| Standard Package | 24 |
| Type | Cover;Self-Closing, Flip/Snap |
| UNSPSC | 39131708 |
| UPC | 05016950260 |
| Vendor Name | RACO INC |
| Vendor Number | 050169 |
| Vendor Short Name | RACO |
| Width | 2.75 in |
