RACO 506

3X2X2-1/2D METAL STUD BOX

Page Loading...
RACO INC

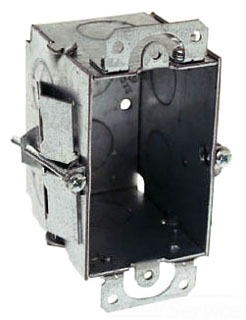

3X2X2-1/2D METAL STUD BOX

Mouse over image to zoom, click to enlarge

Description:
3X2X2-1/2D METAL STUD BOX

UPC:  05016900506

Part Number: 506

UNSPSC: 39121303

Status:  UNKNOWN

Your Price:  $18.81 / EA


Quantity  EA

Specifications

Manufacturer Name RACO INC
MfgPartNo 506
Additional Information Applicable Standard ANSI, NEMA OS1; Application House Wiring Device
Application Electrical
Approval UL 514A, CSA C22.2
Base Price 0.0000
Cable Entry Knockouts for conduit
Capacity 12.5 Cubic Inch
Catalog Number 506
Certified Listed UL Listed
Color Gray
Commerce Sector Construction Materials
Commodity Code 27100
Commodity Description Steel Outlet Boxes
Construction Gangable
CountryOfOrigin MX
Cubic Capacity 12.5 in3
DDCATEGORY 139
Depth 2-1/2 Inch
Depth Maximum 2.5 in
Depth Minimum 2.5 in
Description Long 2-1/2 in. Deep;3 in. x 2 in. Switch Box;Eight 1/2 in. KO's;Gangable;Old work;Plaster Ears;Tigergrip
Description Short 2-1/2 in. Deep;3 in. x 2 in. Switch Box;Eight 1/2 in. KO's;Gangable;Old work;Plaster Ears;Tigergrip
Directory CIS
EU RoHS Indicator Contact Manufacturer
FEATURES Bullets "2-1/2 in. deep;Gangable switch boxes offer the option of constructing a box to hold two or more devices;With proper fitting can be used for conduit;3 in. x 2 in.;armored;flex cable;Supplied with eight 1/2 in. knockouts;Includes plaster ears and tiger grip clips for ""cut-in"" or ""old work"" applications;12.5 cu. in. capacity;Acceptable for use in 2-hour fire rated walls;metal clad;NMSC"
FV BuyAmericanCompliant No
FV Certified Listed UL Listed
FV Gangable Yes
FV Plaster Ears Yes
FV Wiring System Conduit
Families 139
Family Description Steel Outlet Boxes
Fire Resistance Yes
Gangable Yes
Height 3 Inch
Image Location * Image
Industry ELX
InvoiceDescription 2-1/2 DEEP SW BOX T-GRIPS EARS 1/2 KO;3X2X2-1/2D METAL STUD BOX
Item Number 00506
Knockout Location (2) Bottom, (2) Ends
Knockout Size 1/2 Inch
Knockouts True
Long Description SWITCH BOX, GANGABLE, OLD WORK TYPE; PRE-GALVANIZED SHEET STEEL MATERIAL; 2 INCH; 3 INCH; 2-1/2 INCH; 1 GANG(S); UL 514A, CSA C22.2 APPROVAL; TIGER GRIP BRACKET, PLASTER EAR MOUNTING; 16 PER CARTON STANDARD PACKAGE; 12.5 CUBIC INCH CAPACITY
MSDS Form Number *
Material Steel;Pre-Galvanized Sheet Steel
Mounting Plaster ears and side clips;Tiger Grip Bracket, Plaster Ear
Noun *
Number Of Gang S 1-Gang
Number Of Gangs 1
Number Of Knockouts 4
Number Of Outlet 1
Packaging Type No Packaging
Pallet Quantity 2304
Plaster Ears Yes
Power Distribution Features Fire Rated
Product Description 3X2X2-1/2D METAL STUD BOX
Product Keywords WEBREADY
Product Name 2-1/2 in. Deep;3 in. x 2 in. Switch Box;Eight 1/2 in. KO's;Gangable;Old work;Plaster Ears;Tigergrip
Product Type Steel Boxes and Covers
ProductLine RACO
Size 2-1/2 IN
Special Features "Gangable switch box offers the option of constructing a box to hold two or more devices; adjustable plaster ears allow box to be used in ""old work"" applications; provided old work clips on side of box eliminates the need for additional box supports to secure box in wall opening"
Standard UL Listed
Standard Package 16 per Carton
Type Switch Box;Box;Gangable, Old Work
UNSPSC 39121303
UPC 05016900506
Vendor Name RACO INC
Vendor Number 050169
Vendor Short Name RACO
Width 2.5 in;2 Inch
Wiring System Conduit

Resources

CatalogNumber 506
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1
