| Manufacturer Name | RACO INC |
| MfgPartNo | 812C |
| Additional Information | Applicable Standard ANSI, NEMA OS1 |
| Application | Electrical |
| Approval | UL 514A, CSA C22.2 |
| Base Price | 0.0000 |
| Box Size | 4 Inch x 4 Inch |
| Capacity | 6.5 Cubic Inch |
| Catalog Number | 812C |
| Certified Listed | cULus Listed |
| Collection Name | C3 Crushed Corner Covers |
| Color | Silver |
| Commerce Sector | Construction Materials |
| Commodity Code | 27700 |
| Commodity Description | Bar Hangers & Outlet Box Accy |
| Construction | Drawn |
| CountryOfOrigin | CN |
| Cubic Capacity | 6.5 cu.in |
| DDCATEGORY | 1139 |

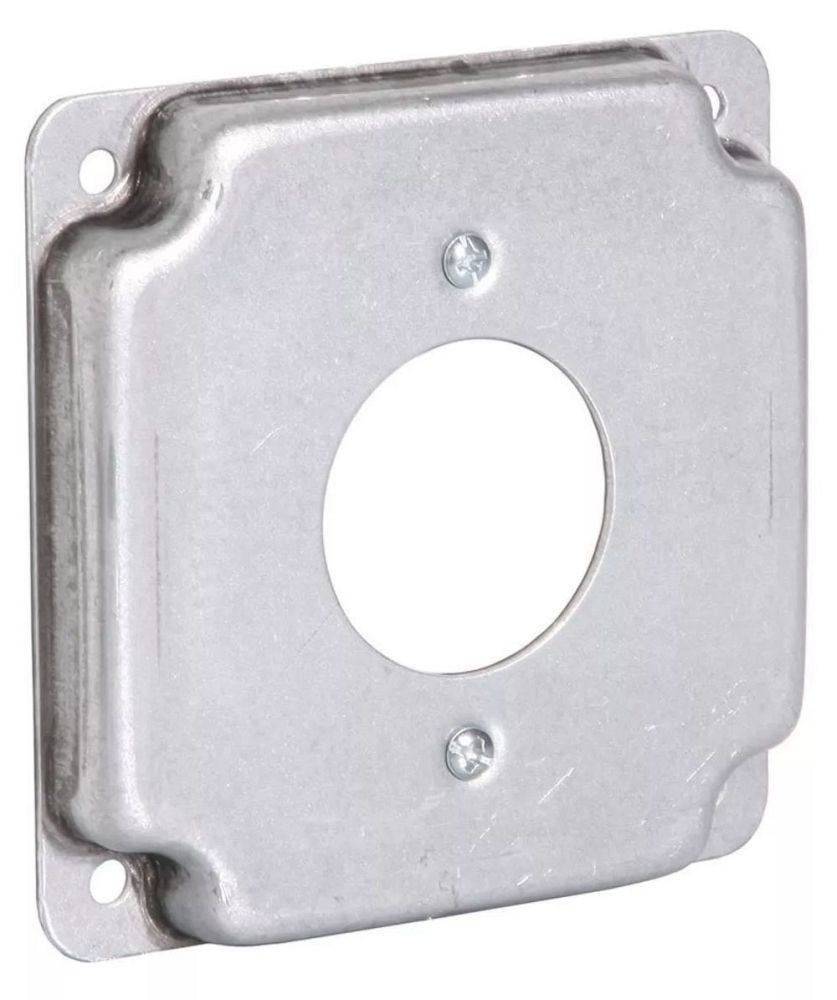

| Description Long | 4 in. Square Cover, Exposed Work, 1.62 in. dia. 20A Receptacle |
| Description Short | 4 in. Square Cover, Exposed Work, 1.62 in. dia. 20A Receptacle |
| Description Slang | Square Cover Exposed |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | RACO exposed work covers include required hardware for mounting the receptacle(s);RACO exposed work covers meet the requirements of the 2014 NEC Article 250.146(A). No bonding jumper is required for covers with: (1) Crushed corners;Hardware and cover are packed in a poly-bag with printed catalog number, compliances and installation instructions;cULus Listed |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | cULus Listed |
| FV Collection Name | C3 Crushed Corner Covers |
| Families | 1139 |
| Family Description | Bar Hangers & Outlet Box Accy |
| Finish | Unpainted |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4SQ EXP COVER - 20A RECEP 1.620 DIAM;4IN SQ WORK COVER |
| Item Number | 99987 |
| Long Description | SQUARE BOX EXPOSED WORK COVER, EXPOSED, CRUSHED CORNER TYPE; 0.0625 INCH PRE-GALVANIZED SHEET STEEL MATERIAL; UL 514A, CSA C22.2 APPROVAL; 10 PER CARTON STANDARD PACKAGE; 6.5 CUBIC INCH CAPACITY; 4 INCH X 4 INCH BOX SIZE |
| MSDS Form Number | * |
| Material | 812C;0.0625 Inch Pre-Galvanized Sheet Steel |
| Minimum Pack Quantity | 10 |
| Noun | * |
| Number Of Outlet | 1 |
| Opening Type | (1) 1.62 Inch Diameter 20 Amp Receptacle |
| Packaging Type | Polybag |
| Paintable Stainable | No |
| Pallet Quantity | 3780 |
| Product Description | 4IN SQ WORK COVER |
| Product Keywords | WEBREADY |
| Product Name | 4 in. Square Cover, Exposed Work, 1.62 in. dia. 20A Receptacle |
| Product Type | Cover |
| ProductLine | RACO |
| Raised Height | 0.50 in |
| Shape | Square |
| Size | 4 in |
| Special Features | "For one receptacle, 20A, 1.620"" diameter hole" |
| Standard | cULus Listed |
| Standard Package | 10 per Carton |
| Type | Exposed Cover;Exposed, Crushed Corner |
| UNSPSC | 39121304 |
| UPC | 05016999987 |
| Vendor Name | RACO INC |
| Vendor Number | 050169 |
| Vendor Short Name | RACO |
