| Manufacturer Name | RACO INC |
| MfgPartNo | 861 |
| Additional Information | Applicable Standard ANSI, NEMA OS1 |
| Application | Electrical |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Box Height | 4 Inch |
| Box Width | 2 Inch |
| Catalog Number | 861 |
| Certified Listed | cULus Listed |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 27700 |
| Commodity Description | Bar Hangers & Outlet Box Accy |
| Construction | Drawn |
| CountryOfOrigin | US |
| DDCATEGORY | 1139 |

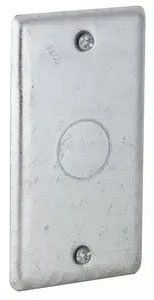

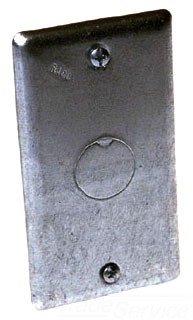

| Description Long | 4 in. x 2 in. Handy Box Cover, 1/2 in. Center KO |
| Description Short | 4 in. x 2 in. Handy Box Cover, 1/2 in. Center KO |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | RACO Handy Box covers are designed to match the contours of the box;Cover corners are rounded;All covers have captive screws;Includes required hardware for mounting the receptacle;Accepts single 2.625 in. diameter receptacle;Installation instructions on polybag;6.5 cu. in. capacity |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | cULus Listed |
| Families | 1139 |
| Family Description | Bar Hangers & Outlet Box Accy |
| Finish | Unpainted |
| Height | 4-3/16 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | HANDY BOX COVER - 1/2 KO IN CENTER;HANDYBOX COVER 1/2 KO |
| Item Number | 00861 |
| Knockouts | 1, 1/2 IN |
| Long Description | HANDY BOX COVER, ROUND CORNER TYPE; 0.03 INCH THICKNESS GALVANIZED SHEET STEEL MATERIAL; 2-5/16 INCH; 4-3/16 INCH; 2 INCH BOX WIDTH; 4 INCH BOX HEIGHT; 1 GANG(S); UL, CSA APPROVAL; 25 PER CARTON STANDARD PACKAGE |
| MSDS Form Number | * |
| Material | 861;0.03 Inch Thickness Galvanized Sheet Steel |
| Minimum Pack Quantity | 25 |
| Noun | * |
| Number Of Gangs | 1 |
| Number Of Outlet | Blank w 1/2 IN ko |
| Opening Type | (1) 1/2 Inch Centered Knockout |
| Paintable Stainable | No |
| Pallet Quantity | 12000 |
| Product Description | HANDYBOX COVER 1/2 KO |
| Product Keywords | WEBREADY |
| Product Name | 4 in. x 2 in. Handy Box Cover, 1/2 in. Center KO |
| Product Type | Cover |
| ProductLine | RACO |
| Shape | Rectangular |
| Size | 0.49 in x 2.313 in x 4.188 in |
| Special Features | "Captive mounting screws included; cover corners are rounded to match contours of handy box; 2-5/16"" wide x 4-3/16"" tall; 1/2"" knockout in center" |
| Standard | cULus Listed |
| Standard Package | 25 per Carton |
| Type | Cover;Round Corner |
| UNSPSC | 39121304 |
| UPC | 05016900861 |
| Vendor Name | RACO INC |
| Vendor Number | 050169 |
| Vendor Short Name | RACO |
| Width | 2-5/16 Inch |
