| Manufacturer Name | SIEMENS |
| MfgPartNo | 3RH21401BB40 |
| Additional Information | RoHS Compliant; Frame Size S00; Overall Dimension 45 Millimeter Width x 73 Millimeter Depth x 57.5 Millimeter Height; Temperature Rating -25 to 60 Deg C |
| Applicable Standard | IEC 60947-1/4-1/5-1/61508, EN 60947-1 |
| Approval | UL, CSA, CE, EAC, CCC |
| B10 Value With High Demand Rate Acc To SN 31920 Note | With0.3xIe |
| Base Price | 0.0000 |
| Brand Name | SIRIUS |
| Catalog Number | 3RH21401BB40 |
| Closing Delay At DC Maximum | 100 ms |
| Closing Delay At DC Minimum | 30 ms |
| Coil Voltage | 24 Volt DC |
| Commerce Sector | Construction Materials |
| Commodity Code | 42110 |
| Commodity Description | General Purpose Plug-In Relays & Accessories |
| Contact Configuration | 4NO |
| Contact Current Rating | 10 Amp (AC-12/AC-15/DC-12/DC-13) |
| Contact Type | Snap-On |
| Contact Voltage Rating | 690 Volt AC, 600 Volt DC |
| CountryOfOrigin | DE |
| DDCATEGORY | 2143 |
| Directory | CIS |
| Enclosure | IP20 |
| Families | 2143 |
| Family Description | General Purpose Plug-In Relays & Accessories |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CONTACTOR RELAY 4NO DC 24V SCREW;24V CNCTR RELAY |
| Item Number | 90681 |

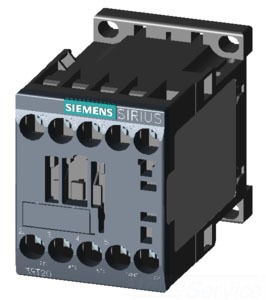

| Long Description | CONTACTOR RELAY, DC OPERATED TYPE; 4NO CONTACT CONFIGURATION; UL, CSA, CE, EAC, CCC APPROVAL; IEC 60947-1/4-1/5-1/61508, EN 60947-1 APPLICABLE STANDARD; 35 MILLIMETER STANDARD RAIL MOUNTING; IP20 ENCLOSURE; 4 POLE(S); SCREW TERMINAL TYPE |
| MSDS Form Number | * |
| Model | 3RH21 |
| Mounting | 35 Millimeter Standard Rail |
| No Load Switching Frequency At AC | 10000 1/h |
| No Load Switching Frequency At DC | 10000 1/h |
| Noun | * |
| Number Of Poles | 4 |
| Opening Delay At DC Maximum | 13 ms |
| Opening Delay At DC Minimum | 7 ms |
| Operating Current At 1 Current Path At DC 12 At 440 V Rated Value | 0.3 A |
| Operating Current At 1 Current Path At DC 12 At 600 V Rated Value | 0.15 A |
| Operating Current At 1 Current Path At DC 13 At 440 V Rated Value | 0.14 A |
| Operating Current At 1 Current Path At DC 13 At 600 V Rated Value | 0.1 A |
| Operating Current At AC 12 Maximum | 10 A |
| Operating Current At AC 15 At 400 V Rated Value | 3 A| |
| Operating Current With 2 Current Paths In Series At DC 13 At 110 V Rated Value | 1.3 A |
| Operating Current With 2 Current Paths In Series At DC 13 At 220 V Rated Value | 0.9 A |
| Operating Current With 2 Current Paths In Series At DC 13 At 24 V Rated Value | 10 A |
| Operating Current With 2 Current Paths In Series At DC 13 At 440 V Rated Value | 0.2 A |
| Operating Current With 2 Current Paths In Series At DC 13 At 60 V Rated Value | 3.5 A |
| Operating Current With 2 Current Paths In Series At DC 13 At 600 V Rated Value | 0.1 A |
| Operating Current With 3 Current Paths In Series At DC 12 At 110 V Rated Value | 10 A |
| Operating Current With 3 Current Paths In Series At DC 12 At 220 V Rated Value | 3.6 A |
| Operating Current With 3 Current Paths In Series At DC 12 At 440 V Rated Value | 2.5 A |
| Operating Current With 3 Current Paths In Series At DC 12 At 600 V Rated Value | 1.8 A |
| Operating Current With 3 Current Paths In Series At DC 13 At 110 V Rated Value | 3 A |
| Operating Current With 3 Current Paths In Series At DC 13 At 220 V Rated Value | 1.2 A |
| Operating Current With 3 Current Paths In Series At DC 13 At 24 V Rated Value | 10 A |
| Operating Current With 3 Current Paths In Series At DC 13 At 440 V Rated Value | 0.5 A |
| Operating Current With 3 Current Paths In Series At DC 13 At 60 V Rated Value | 4.7 A |
| Operating Current With 3 Current Paths In Series At DC 13 At 600 V Rated Value | 0.26 A |
| Operating Frequency At AC 12 Maximum | 1000 1/h |
| Operating Frequency At AC 14 Maximum | 1000 1/h |
| Operating Frequency At AC 15 Maximum | 1000 1/h |
| Operating Frequency At DC 12 Maximum | 1000 1/h |
| Operating Frequency At DC 13 Maximum | 1000 1/h |
| Product Description | 24V CNCTR RELAY |
| Product Keywords | WEBREADY |
| Product Name | Motor starter controls |
| ProductLine | SIEM |
| Reference Code Acc To DIN EN 81346 2 | K |
| Shock Resistance At Rectangular Impulse At DC | 10g/5ms,5g/10ms |
| Shock Resistance With Sine Pulse At DC | 15g/5ms,8g/10ms |
| Terminal Type | Screw |
| Type | DC Operated |
| UNSPSC | 39121521 |
| UPC | 66264390681 |
| Vendor Name | SIEMENS AUTOMATION |
| Vendor Number | 662643 |
| Vendor Short Name | SIEM2 |
