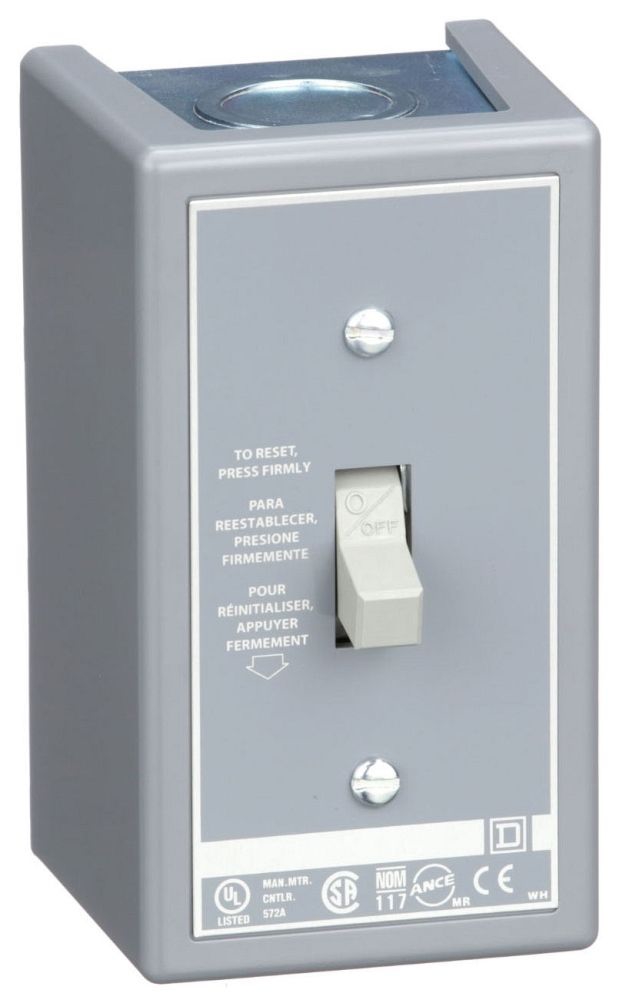

SQD 2510FG2

Manual Starter, fractional horsepower, 16A, 2 poles, 1 HP at 277 VAC, toggle operated, no indicator, NEMA 1 enclosure

Page Loading...
SQUARE-D/SCHNEIDER
Manual Starter, fractional horsepower, 16A, 2 poles, 1 HP at 277 VAC, toggle operated, no indicator, NEMA 1 enclosure

Mouse over image to zoom, click to enlarge

Description:
Manual Starter, fractional horsepower, 16A, 2 poles, 1 HP at 277 VAC, toggle operated, no indicator, NEMA 1 enclosure

UPC:  78590155395

Part Number: 2510FG2

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $104.04 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 2510FG2
1 Phase HP Volts 1 HP at 115/230/277 VAC, 3/4 HP at 115/230 VDC
Additional Information Approval UL, CSA; Application Small Machine Tool, Pump, Fan, Conveyor
Amperage Rating 16 A
Application PROVIDES OVERLOAD PROTECTION AS WELL AS MANUAL ON/OFF CONTROL FOR SMALL MOTORS IN A VARIETY OF INDUSTRIAL AND COMMERICAL INSTALLATIONS.
Awg Gauge AWG 14...AWG 12 copper
Base Price 0.0000
Brand Name F
Cable Entry "0.5"" and 0.75"" knock-outs (top and bottom)"
Catalog Number 2510FG2
Commerce Sector Construction Materials
Commodity Code 41360
Commodity Description Manual Starters
Connection Screw clamp terminals
Construction Standard NEMA
Control Type Toggle switch
Control Unit Toggle switch NULL
CountryOfOrigin MX
Current Rating 16 A;16 Ampere
DDCATEGORY 2117
Depth 2.75 in
Directory CIS
Enclosure NEMA 1 PLASTIC STANDARD SIZE
Enclosure Type NEMA 1, Surface
Environmental Conditions SINGLE UNIT METAL BOX - GENERAL PURPOSE
Families 2117
Family Description Manual Starters
Height 4.25 in
Horsepower Rating 1hp 115 V AC;1hp 277 V AC;0.75hp 115 V DC;0.75hp 230 V DC;2hp 230 V AC
Image Location * Image
Industry ELX
InvoiceDescription Manual Starter, fractional horsepower, 16A, 2 poles, 1 HP at 277 VAC, toggle operated, no indicator, NEMA 1 enclosure;MANUAL STARTER 277VAC
Item Number 55395
Line Rated Current Metric 16.0 A
Long Description MANUAL STARTER, NON REVERSING, MOTOR PROTECTOR TYPE; 16 AMPERE CURRENT RATING; NEMA 1, SURFACE ENCLOSURE TYPE; NEMA CONSTRUCTION STANDARD; MELTING ALLOY THERMAL OVERLOAD RELAY OVERLOADS; 2 POLES
MSDS Form Number *
Maximum Horse Power Rating 1 hp 115 V AC;1 hp 277 V AC;0.75 hp 115 V DC;0.75 hp 230 V DC;2 hp 230 V AC
Model 2510
Motor Power 1 HP AT 115 V AC-1 HP AT 277 V AC-0.75 HP AT 115 V DC-0.75 HP AT 230 V DC-2 HP AT 230 V AC
Motor Starter Type Non reversing
Net Weight Metric 0.36 kg
Noun *
Number Of Phases 1 phase
Number Of Poles 2
Operator Toggle
Overload Relay Type Melting alloy NULL
Overloads Melting Alloy Thermal Overload Relay
Phase 1 PHASE
Poles 2
Product Description Manual Starter, fractional horsepower, 16A, 2 poles, 1 HP at 277 VAC, toggle operated, no indicator, NEMA 1 enclosure
Product Keywords WEBREADY
Product Name Motor starter controls
Product Weight 0.79 lb
ProductLine SQD
Rated Operational Voltage 277 V AC;230 V DC
Reset Manual
Reset Type THERMAL - MELTING ALLOY
Size 2.75 in
Special Features No indicator
Standard UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05
Sub Brand F
Thermal Overload Type Melting alloy
Type Single Unit Manual Starter;Non Reversing, Motor Protector
UNSPSC 39121521
UPC 78590155395
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 277 V AC;230 V DC
Width 2.44 in
Wire Gauge AWG 14...AWG 12 copper

Resources

CatalogNumber 2510FG2
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
