SQD 2510KF2

Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 flush mount

Page Loading...
SQUARE-D/SCHNEIDER
Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 flush mount

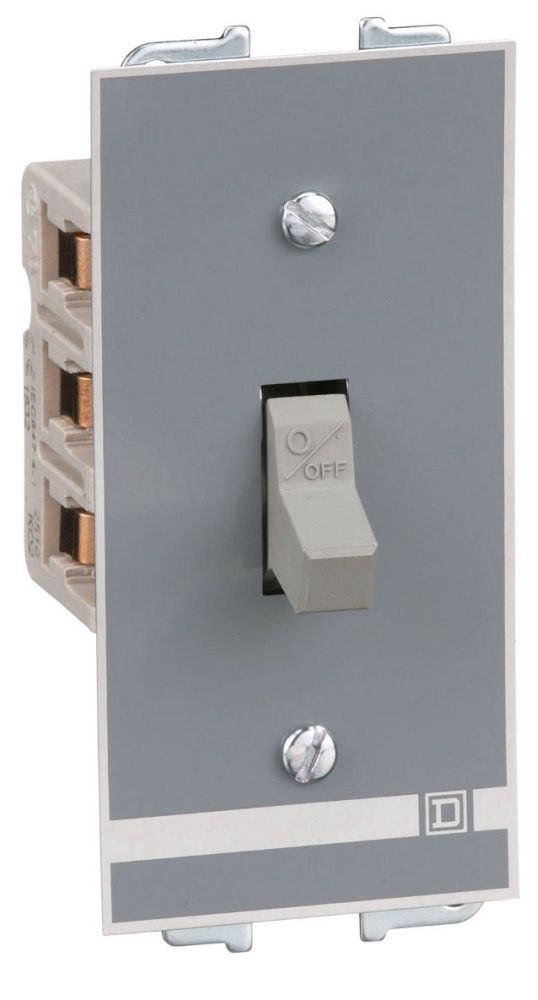

Mouse over image to zoom, click to enlarge

Description:
Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 flush mount

UPC:  78590155444

Part Number: 2510KF2

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $150.25 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 2510KF2
Additional Information DC POWER RATING 1 HP AT 90 VDC, 2 HP AT 115 VDC, 1 1/2 HP AT 230 VDC; COLOR GRAY; MOUNTING TYPE FLUSH
Amperage Rating 30A
Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY
Approval UL, CSA, CE
Awg Gauge AWG 14...AWG 10 copper
Base Price 0.0000
Brand Name K
Catalog Number 2510KF2
Commerce Sector Construction Materials
Commodity Code 41510
Commodity Description Manual Motor Switches & Accessories
Connection Screw clamp terminals
Control Type Toggle
Control Unit Type Toggle NULL
Country Of Origin Mexico NULL
CountryOfOrigin MX
Current Rating 30 A;30 AMPERE
DDCATEGORY 2122
Depth 2.75 in
Directory CIS
Enclosure NOT RATED (FLUSH PLATE) PAINTED SHEET STEEL STANDARD SIZE
Environmental Conditions SINGLE UNIT GRAY FLUSH PLATE
Families 2122
Family Description Manual Motor Switches & Accessories
HP At 120 V 2 HP
HP At 240 V 7 1/2 HP
HP At 480 V 10 HP
HP At 600 V 10 HP
Height 4.25 in
Horsepower Rating 2hp 115 V AC;1hp 90 V DC;2hp 115 V DC;1.5hp 230 V DC;7.5hp 230 V AC;10hp 460 V AC;10hp 575 V AC
Image Location * Image
Industry ELX
InvoiceDescription Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 flush mount;MANUAL SWITCH 600VAC
Item Number 55444
Line Rated Current Metric 30.0 A
Long Description MANUAL SWITCH, 3 PHASE TYPE; PAINTED SHEET STEEL ENCLOSURE, THERMOPLASTIC COVER MATERIAL; 2 3/4 INCH W X 1 3/4 INCH D X 4 1/2 INCH H SIZE; THREE POLE OPERATION TYPE; UL, CSA, CE APPROVAL; 600 VAC, 230 VDC VOLTAGE RATING; 30 AMPERE CURRENT RATING
MSDS Form Number *
Material PAINTED SHEET STEEL ENCLOSURE, THERMOPLASTIC COVER
Maximum Horse Power Rating 2 hp 115 V AC;1 hp 90 V DC;2 hp 115 V DC;1.5 hp 230 V DC;7.5 hp 230 V AC;10 hp 460 V AC;10 hp 575 V AC
Maximum Voltage Rating 600 V AC;230 V DC
Model 2510K
Motor Power 2HP@115VAC - 7.5HP@230VAC - 10HP@460/575VAC
Motor Starter Type Non reversing
Mounting FLUSH
Noun *
Number Of Phases 3 phase
Number Of Poles 3
Operation Type THREE POLE
Phase 3-PHASE
Pilot Light No indicator
Product Description Switch, manual, 30A, 3 pole, 10 HP at 575 VAC, three phase, toggle operated, no indicator, NEMA 1 flush mount
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Rated Operational Voltage 600 V AC;230 V DC
Size 2.75 in;2 3/4 INCH W X 1 3/4 INCH D X 4 1/2 INCH H
Special Features No indicator
Standard UL LISTED - CSA CERTIFIED - CE MARKED
Starter Type Non reversing NULL
Sub Brand K
Type Single Unit Manual Switch;3 PHASE
UNSPSC 39121521
UPC 78590155444
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600//230 VAC//VDC;600 VAC, 230 VDC
Width 2.44 in
Wire Gauge AWG 14...AWG 10 copper

Resources

CatalogNumber 2510KF2
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
