SQD 2510KG1A

Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 1 enclosure

Page Loading...
SQUARE-D/SCHNEIDER
Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 1 enclosure

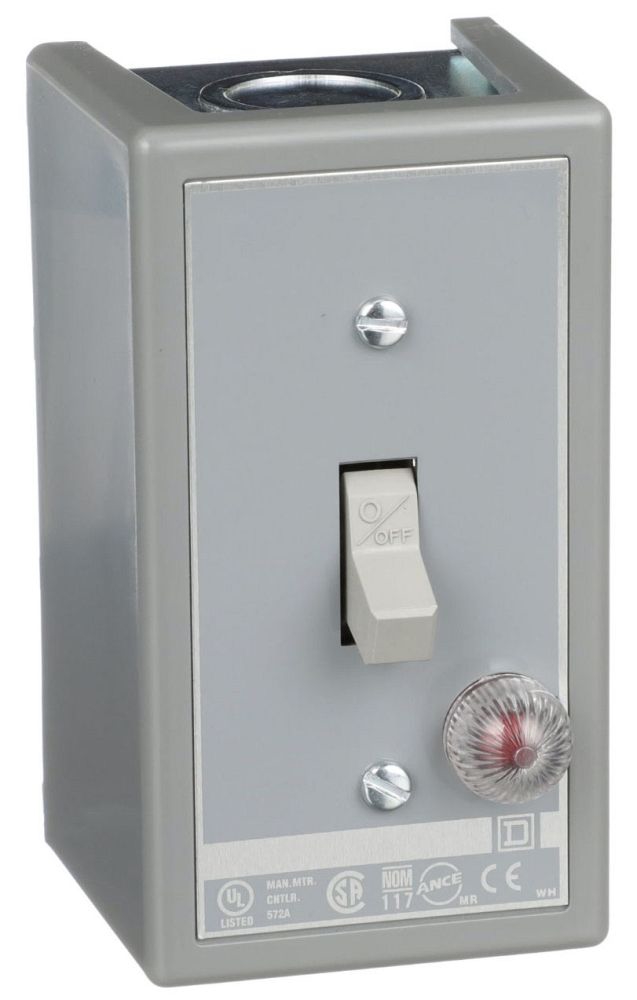

Mouse over image to zoom, click to enlarge

Description:
Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 1 enclosure

UPC:  78590155448

Part Number: 2510KG1A

UNSPSC: 39121521

Status:  UNKNOWN

Your Price:  $145.04 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 2510KG1A
Additional Information DC Power Rating 1 HP at 90 VDC, 2 HP at 115 VDC, 1-1/2 HP at 230 VDC; Includes 115 VAC Pilot Light; Non-Reversing
Amperage Rating 30 A
Application PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY
Approval UL, CSA, CE
Awg Gauge AWG 14...AWG 10 copper
Base Price 0.0000
Brand Name K
Cable Entry "0.5"" and 0.75"" knock-outs (top and bottom)"
Catalog Number 2510KG1A
Commerce Sector Construction Materials
Commodity Code 41510
Commodity Description Manual Motor Switches & Accessories
Connection Screw clamp terminals
Control Type Toggle
Control Unit Type Toggle
Country Of Origin Mexico
CountryOfOrigin MX
Current Rating 30 A;30 Ampere
DDCATEGORY 2122
Depth 2.75 in
Directory CIS
Enclosure NEMA 1 PLASTIC STANDARD SIZE;NEMA 1
Environmental Conditions SINGLE UNIT METAL BOX - GENERAL PURPOSE
Families 2122
Family Description Manual Motor Switches & Accessories
HP At 120 V 2 HP
HP At 240 V 2 HP
HP At 480 V 3 HP
HP At 600 V 3 HP
Height 4.25 in
Horsepower Rating 2hp 115 V AC;2hp 230 V AC;3hp 460 V AC;3hp 575 V AC;1hp 90 V DC;2hp 115 V DC;1.5hp 230 V DC
Image Location * Image
Industry ELX
InvoiceDescription Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 1 enclosure;MANUAL SWITCH 600VAC
Item Number 55448
Line Rated Current Metric 30.0 A
Long Description MANUAL SWITCH, 1-PHASE TYPE; PAINTED SHEET STEEL ENCLOSURE MATERIAL; 2.44 INCH W X 2.75 INCH D X 4.25 INCH H SIZE; DOUBLE POLE OPERATION TYPE; UL, CSA, CE APPROVAL; 600 VAC, 230 VDC VOLTAGE RATING; NEMA 1 ENCLOSURE; 30 AMPERE CURRENT RATING
MSDS Form Number *
Material Painted Sheet Steel Enclosure
Maximum Horse Power Rating 2 hp 115 V AC;2 hp 230 V AC;3 hp 460 V AC;3 hp 575 V AC;1 hp 90 V DC;2 hp 115 V DC;1.5 hp 230 V DC
Maximum Voltage Rating 600 V AC;230 V DC
Model 2510K
Motor Power 3 HP AT 460 V AC-2 HP AT 230 V AC-2 HP AT 115 V AC-3 HP AT 575 V AC-1 HP AT 90 V DC-2 HP AT 115 V DC-1.5 HP AT 230 V DC
Motor Starter Type Non reversing
Noun *
Number Of Phases 1 phase
Number Of Poles 2
Operation Type Double Pole
Phase 1 PHASE
Pilot Light Red indicator, 115 V
Product Description Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 1 enclosure
Product Keywords WEBREADY
Product Name Motor starter controls
ProductLine SQD
Rated Operational Voltage 600 V AC;230 V DC
Size 2.75 in;2.44 Inch W x 2.75 Inch D x 4.25 Inch H
Special Features Red indicator, 115 V
Standard UL LISTED FILE E42243 CCN NLRV-CSA LR25490 CLASS 3211 05
Starter Type Non reversing
Sub Brand K
Type Single Unit Manual Switch;1-Phase
UNSPSC 39121521
UPC 78590155448
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 V AC-230 V DC;600 VAC, 230 VDC
Width 2.44 in
Wire Gauge AWG 14...AWG 10 copper

Resources

CatalogNumber 2510KG1A
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
