SQD 8501CO15V24

Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 240 VAC coil

Page Loading...
SQUARE-D/SCHNEIDER
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 240 VAC coil

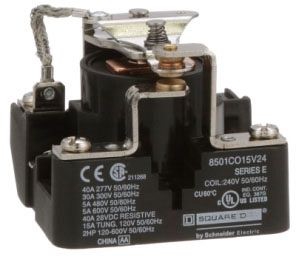

Mouse over image to zoom, click to enlarge

Description:
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 240 VAC coil

UPC:  78590105228

Part Number: 8501CO15V24

UNSPSC: 39122324

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501CO15V24
Additional Information Operating Temperature -22 to 122 Deg F; Overall Dimension 2.43 Inch W x 2.18 Inch D x 2.5 Inch H
Amperage Rating 30 A
Application SUITED FOR CONTROLLING SMALL SINGLE PHASE MOTORS AND OTHER LIGHT LOADS SUCH AS ELECTRIC HEATERS, PILOT LIGHTS OR AUDIBLE SIGNALS.
Approval UL, CSA, CE
Awg Gauge AWG 10 copper
Base Price 0.0000
Brand Name Power Relay 8501C
Catalog Class 8501
Catalog Number 8501CO15V24
Certifications UL Listed File E78351 CCN NLDX
Class Number 8501
Coil 240 VAC@50/60HZ
Coil Burden 10 VA
Coil Voltage 240 VAC at 50/60 Hz
Commerce Sector Construction Materials
Commodity Code 42120
Commodity Description General Purpose Power Relays & Accessories
Connection SCREW CLAMP
Connections Terminals Screw clamp terminal
Contact Configuration 1 NO/1 NC;1NO-1NC
Contact Current Rating 30 Ampere at 600 VAC
Contact Rating AC RATED
Contact Type Visible
Contact Voltage Rating 600 VAC
CountryOfOrigin CN
DDCATEGORY 2144
Device Application Suited for controlling small single phase motors and other light loads
Directory CIS
Drop Down Voltage 85 OF NOMINAL
Environmental Conditions -67 TO 131F
Families 2144
Family Description General Purpose Power Relays & Accessories
Frequency Rating SCREW CLAMP
Hold In Power Consumption In Va Metric 10.0 V.A
Horsepower Rating 2.0 hp
Image Location * Image
In Rated Line Current 30 A
Industry ELX
InvoiceDescription Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 240 VAC coil;RELAY 600VAC 5AMP
Item Number 05228
Long Description POWER RELAY, AC OPERATED TYPE; 1NO-1NC CONTACT CONFIGURATION; UL, CSA, CE APPROVAL; PANEL MOUNTING; 1 POLE(S); SCREW CLAMP TERMINAL TYPE; 240 VAC AT 50/60 HZ COIL VOLTAGE; VISIBLE CONTACT TYPE; 30 AMPERE AT 600 VAC CONTACT CURRENT RATING
MSDS Form Number *
Maximum Switching Voltage 600 V AC
Model 8501
Mounting Panel mounting;Panel
Noun *
Number Of Poles 1
Operating Temperature -22 TO 122 DEGREES F
Phase 1
Pickup Voltage 240 V AC 50/60 Hz
Product Description Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 1 normally open and 1 normally closed contact, 240 VAC coil
Product Keywords WEBREADY
Product Name Power relay
ProductLine SQD
Size 1200
Standard UL LISTED FILE: E78351 CCN NLDX - CSA CERTIFIED FILE: 209683 CLASS 3211 04 - CE MARKED
Sub Brand Type C
Switch Function SPDT
Terminal Connects Screw clamp terminal
Terminal Tightening Torque 1115lbf.in (1.241.69N.m)
Terminal Type Screw Clamp
Tightening Torque 11.0-15.0 |
Timing Range 10 OF NOMINAL
Type Power relay;AC Operated
UNSPSC 39122324
UPC 78590105228
Uc Control Circuit Voltage 240 V AC 50/60 Hz
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Wire Range AWG 10 copper

Resources

CatalogNumber 8501CO15V24
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
