SQD 8501KPR12P14V24

Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, DPDT, 2 NO, 2 NC, 240 VAC coil, pilot light

Page Loading...
SQUARE-D/SCHNEIDER
Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, DPDT, 2 NO, 2 NC, 240 VAC coil, pilot light

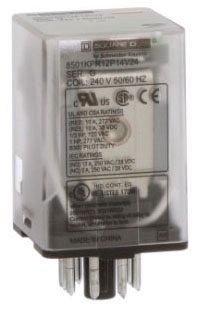

Mouse over image to zoom, click to enlarge

Description:
Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, DPDT, 2 NO, 2 NC, 240 VAC coil, pilot light

UPC:  78590128607

Part Number: 8501KPR12P14V24

UNSPSC: 39122325

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501KPR12P14V24
Application 8501NR52;8501NR51
Base Price 0.0000
Breaking Capacity 3A 120 V AC inductive control circuit UL 508;1.5A 240 V AC inductive control circuit UL 508;10A 277 V AC resistive control circuit UL 508;10A 30 V DC resistive control circuit UL 508
Certifications UL Recognized
Contact Composition DPDT
Contact Material Silver alloy (AgNi)
Contacts Material Silver alloy (AgNi)
Country Of Origin China
CountryOfOrigin CN
DDCATEGORY 2143
Depth 1.4 in
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
For Use With 8501NR52;8501NR51
Height 67.56 mm
Horsepower Rating 1hp 277 V AC;0.33hp 120 V AC
InvoiceDescription Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, DPDT, 2 NO, 2 NC, 240 VAC coil, pilot light;RELAY 2CO CYL
Manual Operator Without test button
Maximum Switching Voltage 300 V AC;30 V DC
Mounting Socket
Mounting Type Socket
Operating Time 20 ms - pick-up;20 ms - drop-out
Pickup Voltage 240 V AC
Pilot Light Indicator light relay energised LED
Product Description Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, DPDT, 2 NO, 2 NC, 240 VAC coil, pilot light
Product Keywords WEBREADY
Product Name General purpose relay
Product Range 8501K
Product Type Relay
ProductLine SQD
Rated Breaking Capacity 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
Rated Power In Hp 1 hp 277 V AC;0.33 hp 120 V AC
Relay Type General purpose
Shape Of Pin Tubular
Shape Of Pins Tubular
Special Features Indicator light relay energised LED;Without test button
Type General purpose;DPDT;Relay
UNSPSC 39122325
UPC 78590128607
Uc Control Circuit Voltage 240 V AC
Width 1.4 in
