Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VAC coil

Page Loading...
SQUARE-D/SCHNEIDER
Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VAC coil

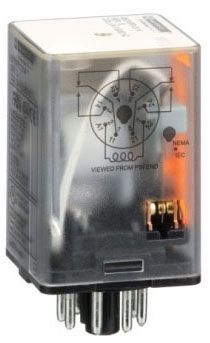

Mouse over image to zoom, click to enlarge

Description:
Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VAC coil

UPC:  78590198110

Part Number: 8501KPR12V14

UNSPSC: 39122325

Status:  UNKNOWN

Your Price:  $47.58 / EA


Quantity  EA

Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501KPR12V14
Additional Information RoHS Compliant; Contact Material Silver Alloy; Power Rating 1 HP at 277 V, 0.33 HP at 120 V; Temperature Rating -40 to 131 Deg F
Application 8501NR52;8501NR51
Approval UL, CSA, CE
Base Price 0.0000
Breaking Capacity 3A 120 V AC inductive control circuit UL 508;1.5A 240 V AC inductive control circuit UL 508;10A 277 V AC resistive control circuit UL 508;10A 30 V DC resistive control circuit UL 508
Catalog Number 8501KPR12V14
Certifications UL Recognized
Coil Voltage 24 VAC
Commerce Sector Construction Materials
Commodity Code 42110
Commodity Description General Purpose Plug-In Relays & Accessories
Contact Composition DPDT
Contact Configuration DPDT, 2NO-2NC
Contact Current Rating 10 Ampere
Contact Material Silver alloy (AgNi)
Contacts Material Silver alloy (AgNi)
Country Of Origin China
CountryOfOrigin CN
DDCATEGORY 2143
Depth 35.56 mm
Directory CIS
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
For Use With 8501NR52;8501NR51
Height 2.66 in
Horsepower Rating 1hp 277 V AC;0.33hp 120 V AC
Image Location * Image
Industry ELX
InvoiceDescription Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VAC coil;RELAY 2CO CYL PIN
Item Number 98110
Long Description GENERAL PURPOSE RELAY, AC OPERATED TYPE; DPDT, 2NO-2NC CONTACT CONFIGURATION; UL, CSA, CE APPROVAL; PLUG-IN MOUNTING; TUBULAR PIN, OCTAL TERMINAL TYPE; 24 VAC COIL VOLTAGE; 10 AMPERE CONTACT CURRENT RATING; ROHS COMPLIANT; CONTACT MATERIAL SILVER ALLOY
MSDS Form Number *
Manual Operator Without test button
Maximum Switching Voltage 300 V AC;30 V DC
Mounting Socket;Plug-In
Mounting Type Socket
Noun *
Operating Time 20 ms - pick-up;20 ms - drop-out
Pickup Voltage 24 V AC
Pilot Light No indicator
Product Description Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VAC coil
Product Keywords WEBREADY
Product Name General purpose relay
Product Range 8501K
Product Type Relay
ProductLine SQD
Rated Breaking Capacity 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
Rated Power In Hp 1 hp 277 V AC;0.33 hp 120 V AC
Relay Type General purpose
Shape Of Pin Tubular
Shape Of Pins Tubular
Special Features No indicator;Without test button
Terminal Type Tubular Pin, Octal
Type General purpose;DPDT;Relay;AC Operated
UNSPSC 39122325
UPC 78590198110
Uc Control Circuit Voltage 24 V AC
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 35.56 mm
