SQD 8501KPR13P14V20

Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 11 pin, 3PDT, 3 NO, 3 NC, 120 VAC coil

Page Loading...
SQUARE-D/SCHNEIDER
Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 11 pin, 3PDT, 3 NO, 3 NC, 120 VAC coil

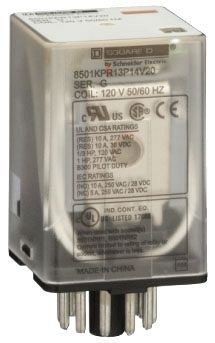

Mouse over image to zoom, click to enlarge

Description:
Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 11 pin, 3PDT, 3 NO, 3 NC, 120 VAC coil

UPC:  78590170388

Part Number: 8501KPR13P14V20;8536SEH1V02H10S

UNSPSC: 39122325

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501KPR13P14V20
Additional Information RoHS Compliant; Contact Material Silver Alloy; Power Rating 1 HP at 277 V, 0.33 HP at 120 V; Temperature Rating -40 to 131 Deg F; Includes LED
Application 8501NR62;8501NR61
Approval UL, CSA, CE
Base Price 0.0000
Breaking Capacity 3A 120 V AC inductive control circuit UL 508;1.5A 240 V AC inductive control circuit UL 508;10A 277 V AC resistive control circuit UL 508;10A 30 V DC resistive control circuit UL 508
Catalog Number 8501KPR13P14V20
Certifications UL Listed
Coil Voltage 120 VAC
Commerce Sector Construction Materials
Commodity Code 42110
Commodity Description General Purpose Plug-In Relays & Accessories
Contact Composition 3PDT
Contact Configuration 3PDT, 3NO-3NC
Contact Current Rating 10 Ampere
Contact Material Silver alloy (AgNi)
Contacts Material Silver alloy (AgNi)
Country Of Origin China
CountryOfOrigin CN
DDCATEGORY 2143
Depth 35.56 mm
Directory CIS
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
For Use With 8501NR62;8501NR61
Height 2.66 in
Horsepower Rating 1hp 277 V AC;0.33hp 120 V AC
Image Location * Image
Industry ELX
InvoiceDescription Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 11 pin, 3PDT, 3 NO, 3 NC, 120 VAC coil;STARTER 600VAC;RELAY 3CO CYL
Item Number 70388
Long Description GENERAL PURPOSE RELAY, AC OPERATED TYPE; 3PDT, 3NO-3NC CONTACT CONFIGURATION; UL, CSA, CE APPROVAL; PLUG-IN MOUNTING; TUBULAR PIN, OCTAL TERMINAL TYPE; 120 VAC COIL VOLTAGE; 10 AMPERE CONTACT CURRENT RATING; ROHS COMPLIANT; CONTACT MATERIAL SILVER ALLOY
MSDS Form Number *
Manual Operator Without test button
Maximum Switching Voltage 300 V AC;30 V DC
Model 8501K
Mounting Socket;Plug-In
Mounting Type Socket
Noun *
Operating Time 20 ms - pick-up;20 ms - drop-out
Pickup Voltage 120 V AC
Pilot Light Indicator light relay energised LED
Product Description Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 11 pin, 3PDT, 3 NO, 3 NC, 120 VAC coil
Product Keywords WEBREADY
Product Name General purpose relay
Product Range 8501K
Product Type Relay
ProductLine SQD
Rated Breaking Capacity 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
Rated Power In Hp 1 hp 277 V AC;0.33 hp 120 V AC
Relay Type General purpose
Shape Of Pin Tubular
Shape Of Pins Tubular
Special Features Indicator light relay energised LED;Without test button
Terminal Type Tubular Pin, Octal
Type General purpose;3PDT;Relay;AC Operated
UNSPSC 39122325
UPC 78590170388
Uc Control Circuit Voltage 120 V AC
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 1.4 in

Resources

CatalogNumber 8501KPR13P14V20;8536SEH1V02H10S
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
