SQD 8501KUDR12V60

Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 110 VDC coil

Page Loading...
SQUARE-D/SCHNEIDER
Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 110 VDC coil

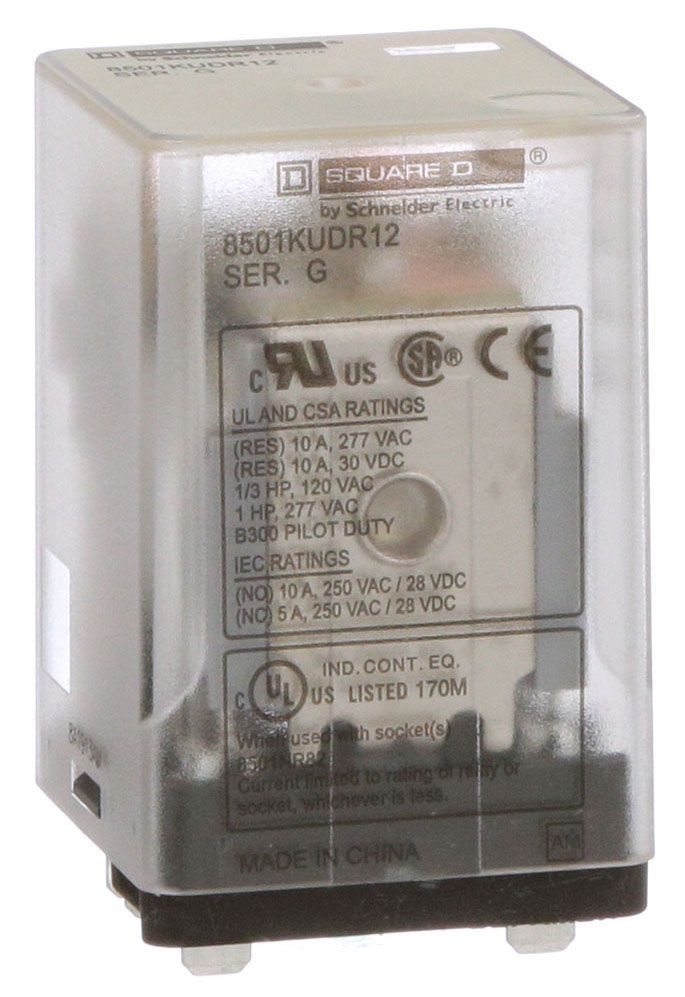

Mouse over image to zoom, click to enlarge

Description:
Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 110 VDC coil

UPC:  78590173597

Part Number: 8501KUDR12V60

UNSPSC: 39122325

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501KUDR12V60
Base Price 0.0000
Breaking Capacity 3A 120 V AC inductive control circuit UL 508;1.5A 240 V AC inductive control circuit UL 508;10A 277 V AC resistive control circuit UL 508;10A 30 V DC resistive control circuit UL 508
Certifications UL Recognized
Contact Material Silver alloy (AgNi) NULL
Contacts Material Silver alloy (AgNi)
CountryOfOrigin CN
DDCATEGORY 2143
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
Horsepower Rating 1hp 277 V AC;0.33hp 120 V AC
InvoiceDescription Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 110 VDC coil;RELAY 2CO QC PINS
Maximum Switching Voltage 300 V AC;30 V DC
Mounting Socket
Operating Time 20 ms - pick-up;20 ms - drop-out
Pilot Light No indicator
Product Description Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 110 VDC coil
Product Keywords WEBREADY
Product Name General purpose relay
ProductLine SQD
Rated Breaking Capacity 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;10 A 30 V DC resistive control circuit UL 508
Rated Power In Hp 1 hp 277 V AC;0.33 hp 120 V AC
Shape Of Pin Spade
Shape Of Pins Spade NULL
UNSPSC 39122325
UPC 78590173597
Uc Control Circuit Voltage 110 V DC

Resources

CatalogNumber 8501KUDR12V60
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
