SQD 8501NR34

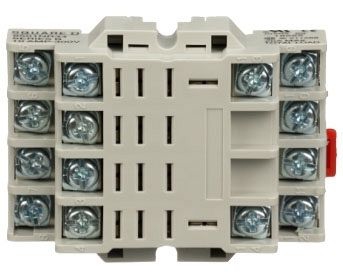

Relay Socket, Harmony 8501R, 14 pins, double tiered screw clamp terminals, DIN rail/panel mount, 10A, 300V AC

Page Loading...
SQUARE-D/SCHNEIDER
Relay Socket, Harmony 8501R, 14 pins, double tiered screw clamp terminals, DIN rail/panel mount, 10A, 300V AC

Mouse over image to zoom, click to enlarge

Description:
Relay Socket, Harmony 8501R, 14 pins, double tiered screw clamp terminals, DIN rail/panel mount, 10A, 300V AC

UPC:  78590113731

Part Number: 8501NR34

UNSPSC: 39122335

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501NR34
Additional Information WIRE SIZE 22 TO 12 AWG; PACKAGING QUANTITY 1 PER SET
Amperage Rating 10@300V A
Approval UL, CSA, CE
Base Price 0.0000
Catalog Number 8501NR34
Commerce Sector Construction Materials
Commodity Code 42110
Commodity Description General Purpose Plug-In Relays & Accessories
Contact Rating 300 Volt AC 10 Amp
Country Of Origin China
CountryOfOrigin CN
DDCATEGORY 2143
Directory CIS
Electrical Connection Double tiered screw clamp terminals
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
Image Location * Image
In Rated Current 10A 300 V AC
Industry ELX
InvoiceDescription Plug in relay, Type N, relay socket, 14 blade, for 8510R relays;RELAY SOCKET 300VAC
Item Number 13731
Line Rated Current 10 A 300 V AC
Long Description RELAY SOCKET, DOUBLE TIER TYPE; 8501RS44 SERIES PLUG-IN RELAY USED ON; 300 VOLT AC 10 AMP CONTACT RATING; UL, CSA, CE APPROVAL; DIN-RAIL/PANEL MOUNTING; SCREW CLAMP, 14-PIN SPADE TERMINAL TYPE; WIRE SIZE 22 TO 12 AWG; PACKAGING QUANTITY 1 PER SET
MSDS Form Number *
Model 8501NR
Mounting Panel;DIN rail;DIN-Rail/Panel
Noun *
Pin Number 14.0
Pin Shape Spade
Product Description Relay Socket, Harmony 8501R, 14 pins, double tiered screw clamp terminals, DIN rail/panel mount, 10A, 300V AC
Product Keywords WEBREADY
Product Name Relay socket or base
ProductLine SQD
Shape Of Pin Spade
Terminal Type Screw Clamp, 14-Pin Spade
Type Double Tier
UNSPSC 39122335
UPC 78590113731
Used On 8501RS44 Series Plug-In Relay
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 8501NR34
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
