SQD 8501NR62

Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers

Page Loading...
SQUARE-D/SCHNEIDER

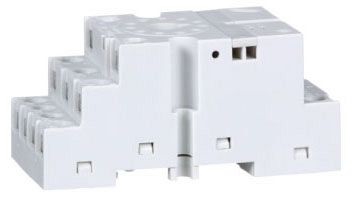

Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers

Mouse over image to zoom, click to enlarge

Description:
Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers

UPC:  78590158371

Part Number: 8501NR62

UNSPSC: 39122335

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501NR62
Additional Information RoHS Compliant; Wire Size 22 to 12 AWG
Amperage Rating 5-16 A
Approval UL (Canada and US), CSA, CE
Base Price 0.0000
Catalog Number 8501NR62
Commerce Sector Construction Materials
Commodity Code 42110
Commodity Description General Purpose Plug-In Relays & Accessories
Contact Rating 300 Volt 16 Amp, 600 Volt 5 Amp (UL), 300 Volt AC 10 Amp (CSA)
Country Of Origin Taiwan NULL
CountryOfOrigin TW
DDCATEGORY 2143
Directory CIS
Electrical Connection Double tiered screw clamp terminals
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
Image Location * Image
In Rated Current 5A 600 V AC;16A 300 V AC
Industry ELX
InvoiceDescription Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers;RELAY SOCKET 300VAC
Item Number 58371
Line Rated Current 5 A 600 V AC;16 A 300 V AC
Long Description RELAY SOCKET, 2-TIER TYPE; 8501K/R SERIES PLUG-IN RELAY, 8430 MPS PHASE FAILURE RELAY, 9050JCK TIMER USED ON; 300 VOLT 16 AMP, 600 VOLT 5 AMP (UL), 300 VOLT AC 10 AMP (CSA) CONTACT RATING; UL (CANADA AND US), CSA, CE APPROVAL
MSDS Form Number *
Model 8051NR
Mounting Panel;DIN rail;DIN Rail, Direct Panel
Noun *
Pin Number 11.0
Pin Shape Tubular NULL
Product Description Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers
Product Keywords WEBREADY
Product Name Relay socket or base
ProductLine SQD
Shape Of Pin Tubular
Terminal Type 11-Pin Tubular, Screw Clamp
Type 2-Tier
UNSPSC 39122335
UPC 78590158371
Used On 8501K/R Series Plug-In Relay, 8430 MPS Phase Failure Relay, 9050JCK Timer
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 8501NR62
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
