SQD 8501NR62B

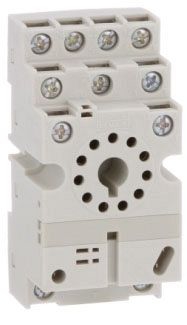

Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers, bulk packaged

Page Loading...
SQUARE-D/SCHNEIDER
Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers, bulk packaged

Mouse over image to zoom, click to enlarge

Description:
Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers, bulk packaged

UPC:  78590100607

Part Number: 8501NR62B

UNSPSC: 39122335

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501NR62B
Additional Information Wire Size 22 to 12 AWG
Amperage Rating 5-16 A
Approval UL (Canada and US), CSA, CE
Base Price 0.0000
Catalog Number 8501NR62B
Commerce Sector Construction Materials
Commodity Code 42110
Commodity Description General Purpose Plug-In Relays & Accessories
Contact Rating 300 V 15 Ampere, 600 V 10 Ampere (UL), 300 V 10 Ampere (CSA)
Country Of Origin Taiwan NULL
CountryOfOrigin TW
DDCATEGORY 2143
Directory CIS
Electrical Connection Double tiered screw clamp terminals
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
Image Location * Image
In Rated Current 5A 600 V AC;16A 300 V AC
Industry ELX
InvoiceDescription Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers, bulk packaged;RELAY SOCKET 300VAC
Item Number 00607
Line Rated Current 5 A 600 V AC;16 A 300 V AC
Long Description RELAY SOCKET, DOUBLE TIER TYPE; 8501K/R SERIES PLUG-IN RELAY, 8430 MPS PHASE FAILURE RELAY, 9050JCK TIMER USED ON; 300 V 15 AMPERE, 600 V 10 AMPERE (UL), 300 V 10 AMPERE (CSA) CONTACT RATING; UL (CANADA AND US), CSA, CE APPROVAL
MSDS Form Number *
Model N, 8051N
Mounting DIN rail;panel;DIN Rail/Direct Panel
Noun *
Pin Number 11.0
Pin Shape Tubular NULL
Product Description Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers, bulk packaged
Product Keywords WEBREADY
Product Name Relay socket or base
ProductLine SQD
Shape Of Pin Tubular
Terminal Type 11 Pin Tubular, Screw Clamp
Type Double Tier
UNSPSC 39122335
UPC 78590100607
Used On 8501K/R Series Plug-In Relay, 8430 MPS Phase Failure Relay, 9050JCK Timer
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD

Resources

CatalogNumber 8501NR62B
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
