SQD 8501RS41V20

Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC

Page Loading...
SQUARE-D/SCHNEIDER
Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC

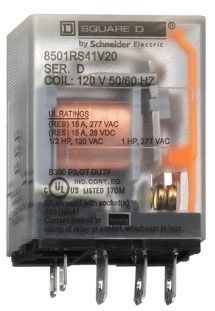

Mouse over image to zoom, click to enlarge

Description:
Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC

UPC:  78590113703

Part Number: 8501RS41V20

UNSPSC: 39122325

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501RS41V20
Additional Information RoHS Compliant; Contact Material Silver Tin Oxide; Operating Temperature -40 to 158 Deg F
Amperage Rating 10@240VAC to 15@120VAC A
Application 8501NR41
Approval UL (Canada and US), CSA, CE
Base Price 0.0000
Brand Name 8501R
Breaking Capacity 3A 120 V AC inductive control circuit UL 508;1.5A 240 V AC inductive control circuit UL 508;15A 120 V AC resistive control circuit UL 508;10A 277 V AC resistive control circuit UL 508;15A 28 V DC resistive control circuit UL 508 NULL
Catalog Number 8501RS41V20
Certifications UL Listed
Coil 300 V AT AC-30 V AT DC
Coil Voltage 120 Volt AC at 50/60 Hertz
Commerce Sector Construction Materials
Commodity Code 42110
Commodity Description General Purpose Plug-In Relays & Accessories
Connection SPADE
Contact Composition SPDT NULL
Contact Configuration SPDT
Contact Current Rating 10 Amp
Contact Material Silver alloy, gold flashed NULL
Contact Voltage Rating 240 Volt AC at 50/60 Hertz, 28 Volt DC
Contacts Material Silver alloy, gold flashed
CountryOfOrigin CN
DDCATEGORY 2143
Depth 1.65 in
Directory CIS
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
For Use With 8501NR41 NULL
Height 1.07 in
Height Metric 27.3 mm
Horsepower Rating 0.5 120 V AC;1 277 V AC NULL
Image Location * Image
Industry ELX
InvoiceDescription Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC;RELAY 240VAC 12AMP
Item Number 13703
Long Description MINIATURE PLUG IN RELAY, AC OPERATED TYPE; SPDT CONTACT CONFIGURATION; UL (CANADA AND US), CSA, CE APPROVAL; PLUG-IN/SOCKET MOUNTING; SPADE TERMINAL TYPE; 120 VOLT AC AT 50/60 HERTZ COIL VOLTAGE; 10 AMP CONTACT CURRENT RATING
MSDS Form Number *
Manual Operator Without test button NULL
Maximum Switching Voltage 300 V AC;30 V DC
Model 8501RS
Mounting Socket;Plug-In/Socket
Mounting Type Socket NULL
Noun *
Operating Temperature -40-131 AF
Operating Time 20 ms - pick-up;20 ms - drop-out
Pickup Voltage 120 V AC
Pilot Light No indicator NULL
Product Description Miniature Relay, Harmony 8501R, SPDT, 5 blades, coil, 15A resistive at 120V AC, 1HP at 277V AC, 120V AC, 1NO+ 1NC
Product Keywords WEBREADY
Product Name General purpose relay
Product Range 8501R NULL
Product Type Miniature Relay NULL
ProductLine SQD
Rated Breaking Capacity 3 A 120 V AC inductive control circuit UL 508;1.5 A 240 V AC inductive control circuit UL 508;15 A 120 V AC resistive control circuit UL 508;10 A 277 V AC resistive control circuit UL 508;15 A 28 V DC resistive control circuit UL 508
Rated Power In Hp 0.5 120 V AC;1 277 V AC
Relay Type Standard NULL
Shape Of Pin Spade
Shape Of Pins Spade NULL
Special Features No indicator;Without test button
Standard UL LISTED-UL RECOGNIZED-CSA-CE
Terminal Type Spade
Type Standard;Miniature Relay;SPDT;AC Operated
UNSPSC 39122325
UPC 78590113703
Uc Control Circuit Voltage 120 V AC NULL
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Width 0.55 in
Width Metric 14.0 mm|

Resources

CatalogNumber 8501RS41V20
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
