SQD 8501XB20

NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts

Page Loading...
SQUARE-D/SCHNEIDER
NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts

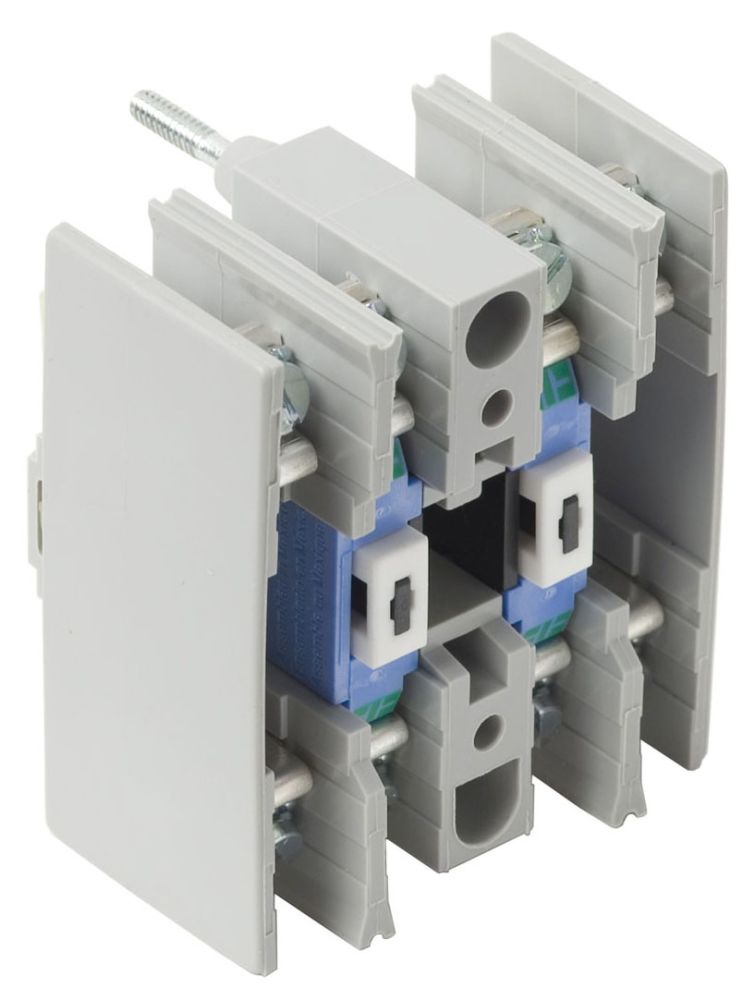

Mouse over image to zoom, click to enlarge

Description:
NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts

UPC:  78590153733

Part Number: 8501XB20

UNSPSC: 39122331

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name SQUARE-D/SCHNEIDER
MfgPartNo 8501XB20
Additional Information Approval UL, CSA; Used On Type x Relay
Amperage Rating 10 A
Application USED TO EXPAND THE NUMBER OF POLES ON A RELAY
Base Price 0.0000
Brand Name 8501X
Catalog Number 8501XB20
Commerce Sector Construction Materials
Commodity Code 42140
Commodity Description Nema Control Relays & Accessories
Connection Screw clamp terminals;AWG 18...AWG 12 copper
Contact Configuration 2 NO 2 standard contact cartridges;2NO
Contact Type Convertible
Contacts Configuration 2 NO 2 standard contact cartridges
CountryOfOrigin MX
Current Rating 10 Ampere
DDCATEGORY 2146
Directory CIS
Electrical Connection Screw clamp terminals
Families 2146
Family Description Nema Control Relays & Accessories
Icm Rated Sc Making Cap 60A 120 V AC inductive control circuit UL 508;30A 240 V AC inductive control circuit UL 508;15A 480 V AC inductive control circuit UL 508;12A 600 V AC inductive control circuit UL 508;10A <= 600 V AC resistive control circuit UL 508;1.1A 125 V DC inductive control circuit UL 508;0.55A 250 V DC inductive control circuit UL 508;0.2A 301...600 V DC inductive control circuit UL 508;4A 125 V DC inductive control circuit UL 508;0.8A 250 V DC resistive control circuit UL 508
Image Location * Image
Industry ELX
InvoiceDescription NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts;RELAY ADDER DECK
Item Number 53733
Long Description ADDER DECK RELAY, 2NO CONTACT CONFIGURATION; 600 VAC VOLTAGE RATING; 10 AMPERE CURRENT RATING; 2 POLE(S); CONVERTIBLE CONTACT TYPE; APPROVAL UL, CSA; USED ON TYPE X RELAY; 8501 MODEL
MSDS Form Number *
Model 8501
Mounting DIRECT
Noun *
Number Of Poles 2
Product Description NEMA Control Relay, Type X, adder deck, 10A resistive at 600 VAC, 2 normally open contacts
Product Keywords WEBREADY
Product Name Control relay
Product Or Component Type Adder deck
ProductLine SQD
Range Of Product 8501X
Rated Breaking Capacity 6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
Rated Short Circuit Making Capacity 60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
Relay Type Control relay
Standard CE-UL RECOGNIZED E78403 CCN NKCR2-CSA LR60905 CLASS 3211 02
Terminal Tightening Torque Control circuit 9.0312.04lbf.in (1.021.36N.m) screw terminals
Tightening Torque Control circuit 1.02-1.36 N.m screw terminals
Type Control relay;Adder deck
UNSPSC 39122331
UPC 78590153733
Vendor Name SQUARE D/TELEMECANIQUE
Vendor Number 785901
Vendor Short Name SQD
Voltage Rating 600 VAC
Wire Gauge AWG 18...AWG 12 copper
