| Manufacturer Name | SQUARE-D/SCHNEIDER |
| MfgPartNo | 8501XO60V02 |
| Additional Information | OPERATING TEMPERATURE -40 TO 160 DEG F; SIZE 5.16 INCH W X 2.23 INCH D X 3.5 INCH H |
| Amperage Rating | 5-10 A |
| Approval | UL, CSA, CE |
| Awg Gauge | AWG 18...AWG 12 copper NULL |
| Base Price | 0.0000 |
| Brand Name | 8501X |
| Catalog Number | 8501XO60V02 |
| Coil | 110 V AC 50 Hz;120 V AC 60 Hz |
| Coil Voltage | 110 V AC 50 Hz;120 V AC 60 Hz NULL;110 Volt AC at 50 Hertz, 120 Volt AC at 60 Hertz |
| Commerce Sector | Construction Materials |
| Commodity Code | 42140 |
| Commodity Description | Nema Control Relays & Accessories |
| Connection | Screw clamp terminals;AWG 18...AWG 12 copper |
| Contact Configuration | 6 NO 6 standard contact cartridges;6NO |
| Contact Current Rating | 10 Amp at 600 Volt AC, 5 Amp at 250 Volt DC |
| Contact Rating | 10 A AC-5 A DC |
| Contact Type | Convertible, Plug-In |
| Contact Voltage Rating | 600 Volt AC, 250 Volt DC |
| Control Circuit Voltage Limits | Operational 0.85...1.1 Uc AC 50/60 Hz |
| Country Of Origin | Mexico NULL |
| CountryOfOrigin | MX |
| Ctrl Circuit Voltage Limits | Operational 0.85...1.1 Uc AC 50/60 Hz |
| Current Rating | 10A AC;5A DC NULL |
| DDCATEGORY | 2146 |
| Depth | 5.16 in |
| Directory | CIS |
| Families | 2146 |
| Family Description | Nema Control Relays & Accessories |
| Height | 3.5 in |
| Hold In Power Consumption In Va | 23-23 VA 60 Hz;25-25 VA 50 Hz |
| Hold In Power Consumption Va | 23VA 60 Hz;25VA 50 Hz |
| Icm Rated Sc Making Cap | 60A 120 V AC inductive control circuit UL 508;30A 240 V AC inductive control circuit UL 508;15A 480 V AC inductive control circuit UL 508;12A 600 V AC inductive control circuit UL 508;10A <= 600 V AC resistive control circuit UL 508;1.1A 125 V DC inductive control circuit UL 508;0.55A 250 V DC inductive control circuit UL 508;0.2A 301...600 V DC inductive control circuit UL 508;4A 125 V DC inductive control circuit UL 508;0.8A 250 V DC resistive control circuit UL 508 |
| Image Location | * Image |
| Industry | ELX |
| Inrush Power In Va | 148-148 VA 60 Hz;143-143 VA 50 Hz |
| InvoiceDescription | NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 6 normally open contacts, 110/120 VAC 50/60 Hz coil;RELAY 600VAC 10AMP |
| Item Number | 53678 |
| Line Rated Current | 10 A AC;5 A DC |
| Long Description | CONTROL RELAY, AC OPERATED TYPE; 6NO CONTACT CONFIGURATION; UL, CSA, CE APPROVAL; PANEL MOUNTING; 6 POLE(S); SCREW CLAMP TERMINAL TYPE; 110 VOLT AC AT 50 HERTZ, 120 VOLT AC AT 60 HERTZ COIL VOLTAGE; CONVERTIBLE, PLUG-IN CONTACT TYPE |
| MSDS Form Number | * |
| Model | 8501X |
| Mounting | Panel |
| Noun | * |
| Number Of Poles | 6 |
| Operating Temperature | -40-160 AF |
| Operating Time | 15 ms - pick-up;16 ms - drop-out |

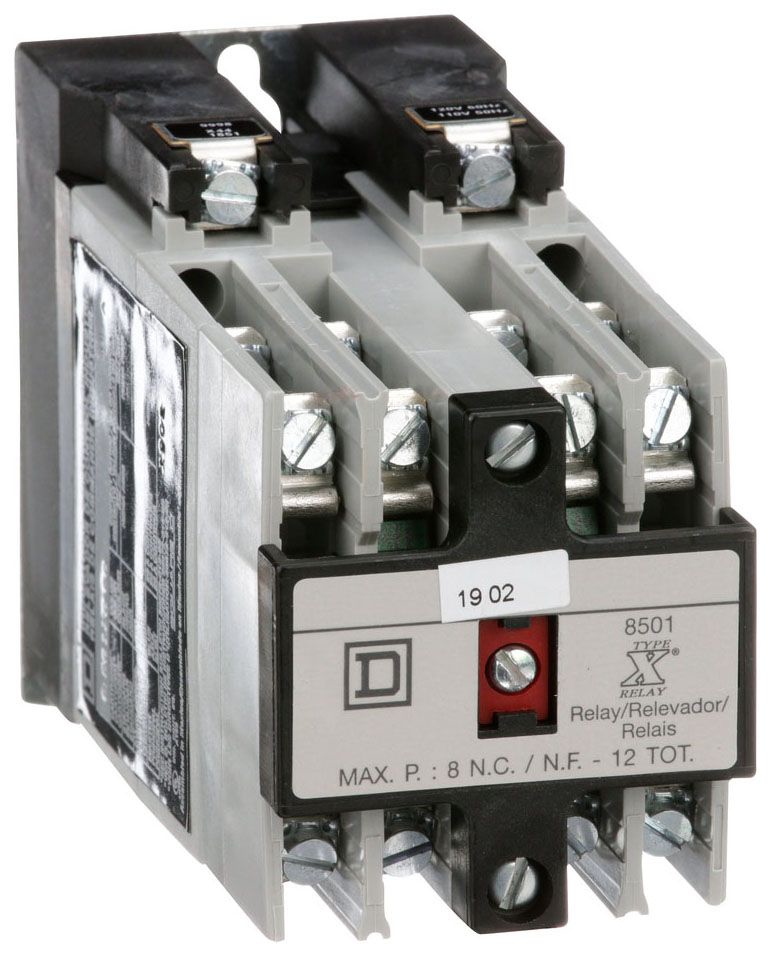

| Product Description | NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 6 normally open contacts, 110/120 VAC 50/60 Hz coil |
| Product Keywords | WEBREADY |
| Product Name | Control relay |
| ProductLine | SQD |
| Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508 |
| Rated Short Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508 |
| Size | 5.16 in |
| Special Features | SCREW CLAMP TERMINALS |
| Standard | CSA LR60905 CLASS 3211 03-UL LISTED FILE E78403 CCN NKCR |
| Terminal Type | Screw Clamp |
| Tightening Torque | Control circuit 1.02-1.36 N.m screw terminals |
| Type | Control;Relay;AC Operated |
| UNSPSC | 39122331 |
| UPC | 78590153678 |
| Vendor Name | SQUARE D/TELEMECANIQUE |
| Vendor Number | 785901 |
| Vendor Short Name | SQD |
| Width | 2.23 in |
